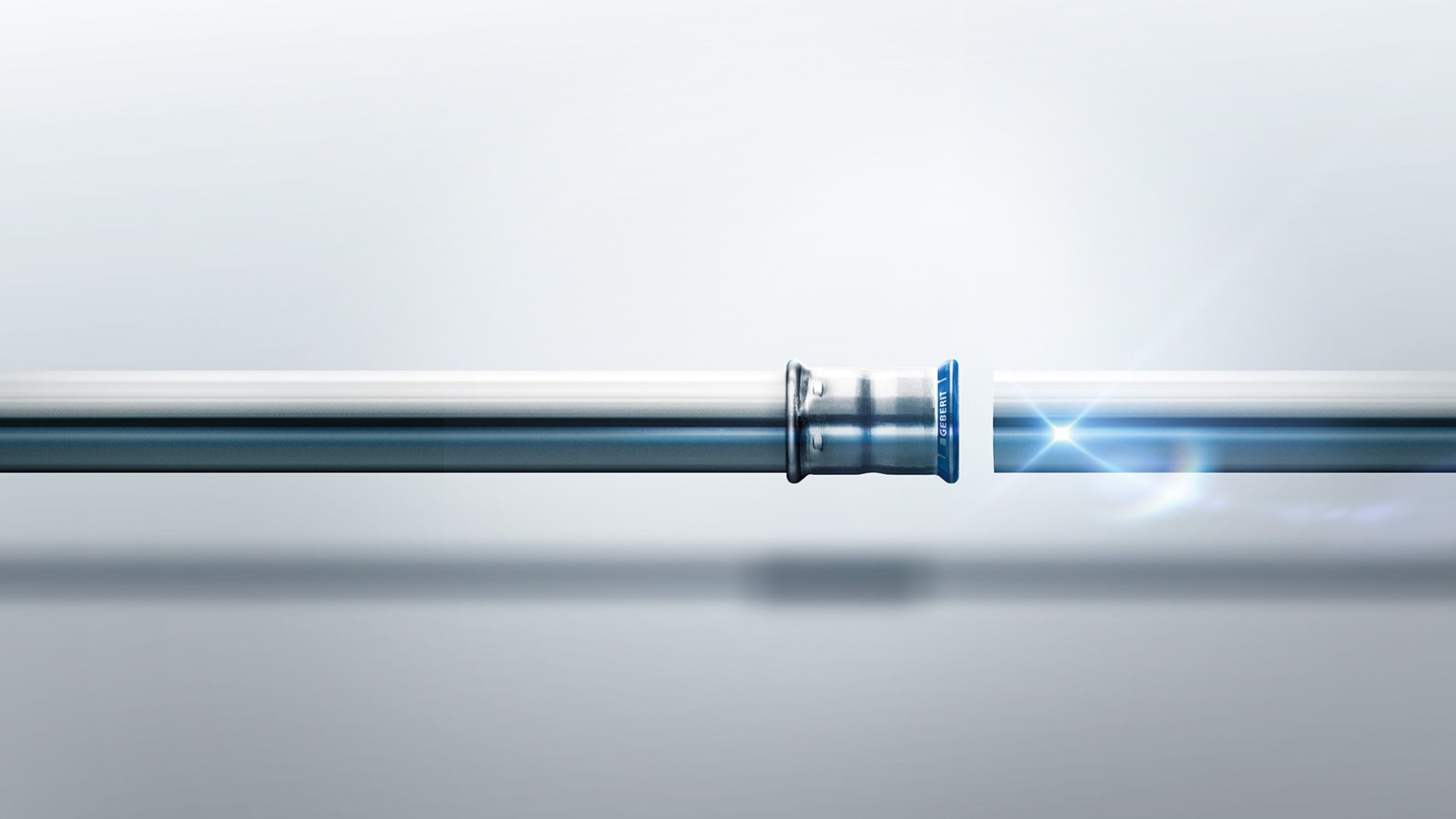

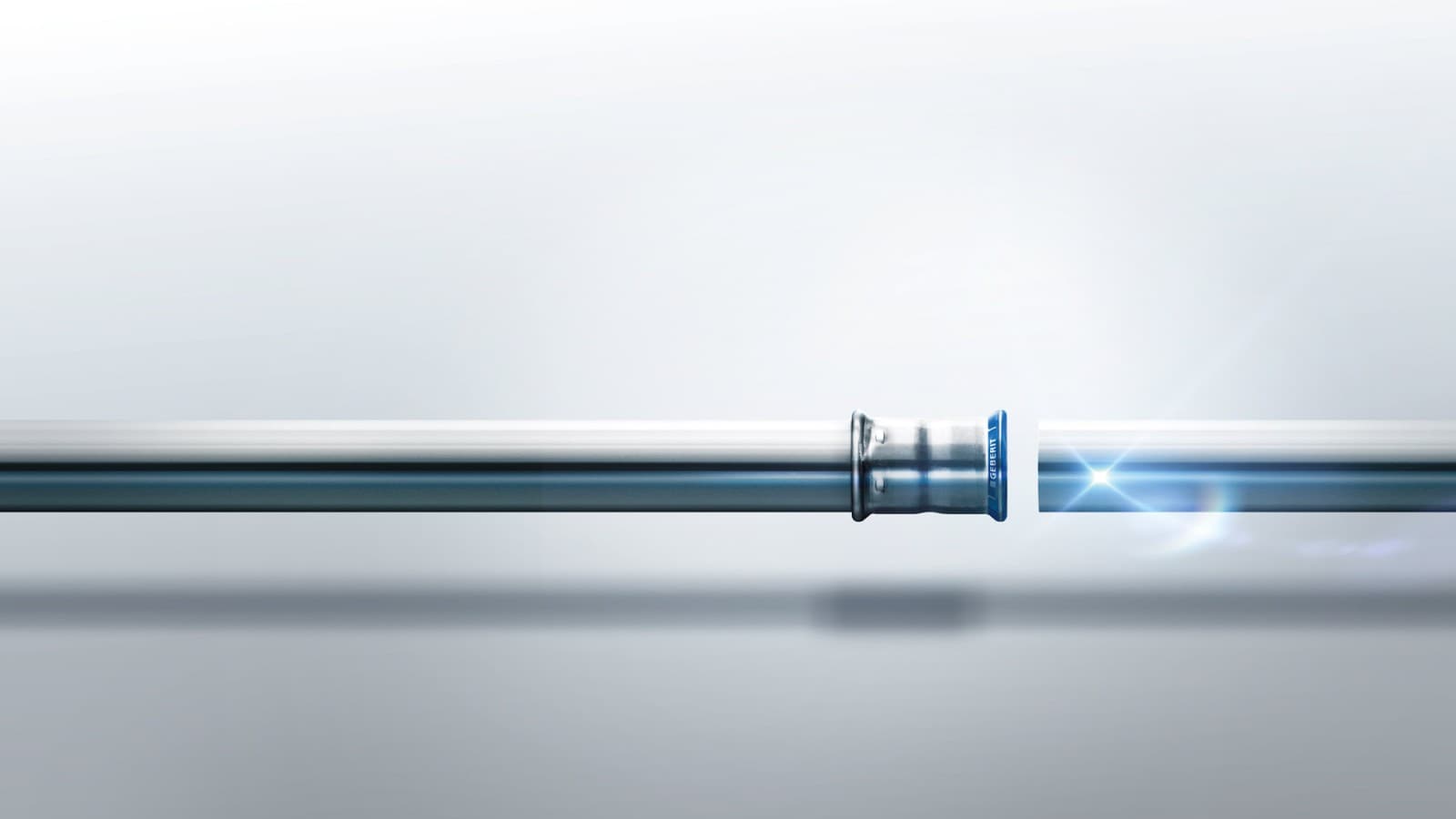

Geberit Mapress Stainless Steel Glossy finish for high requirements

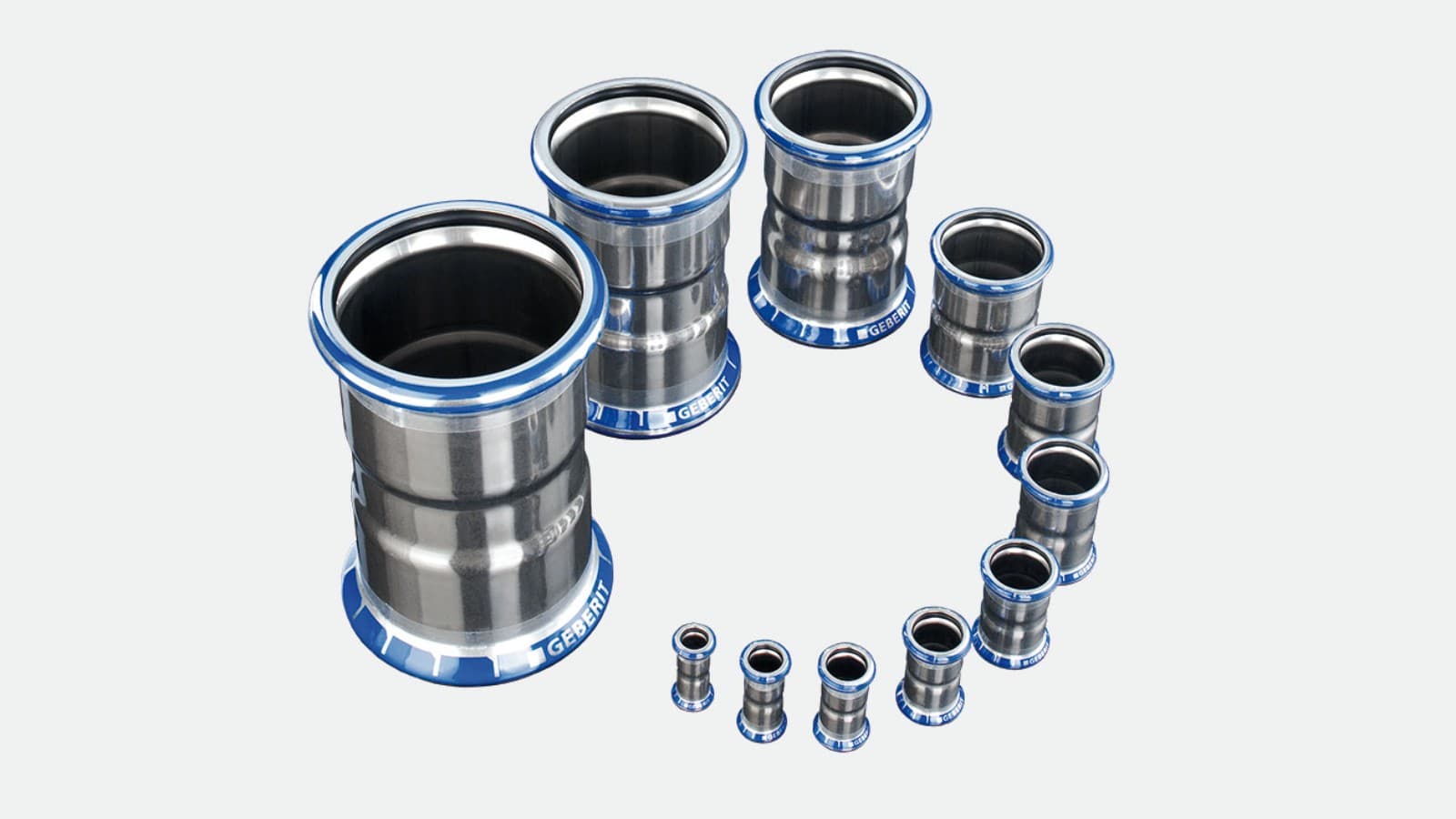

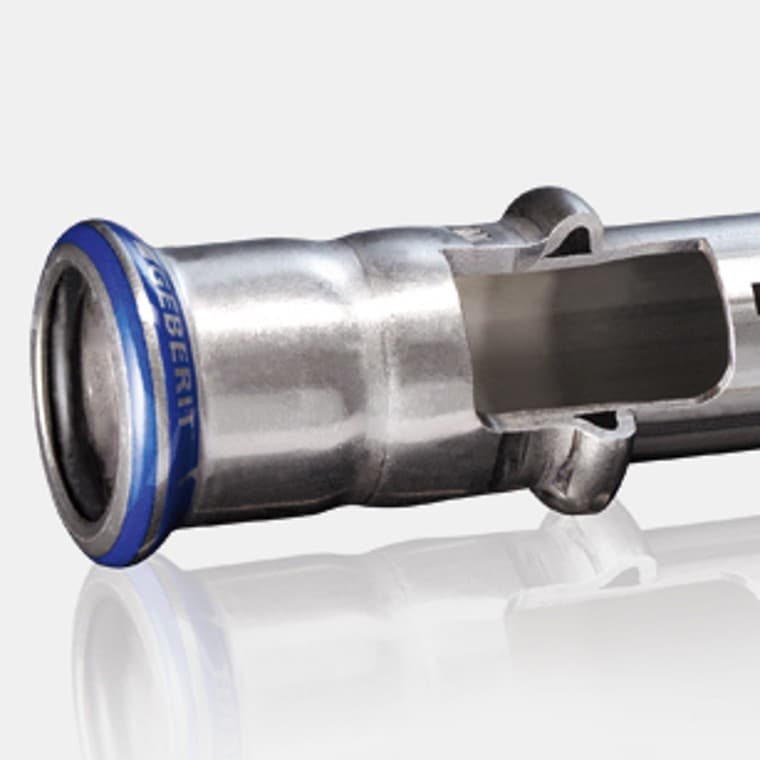

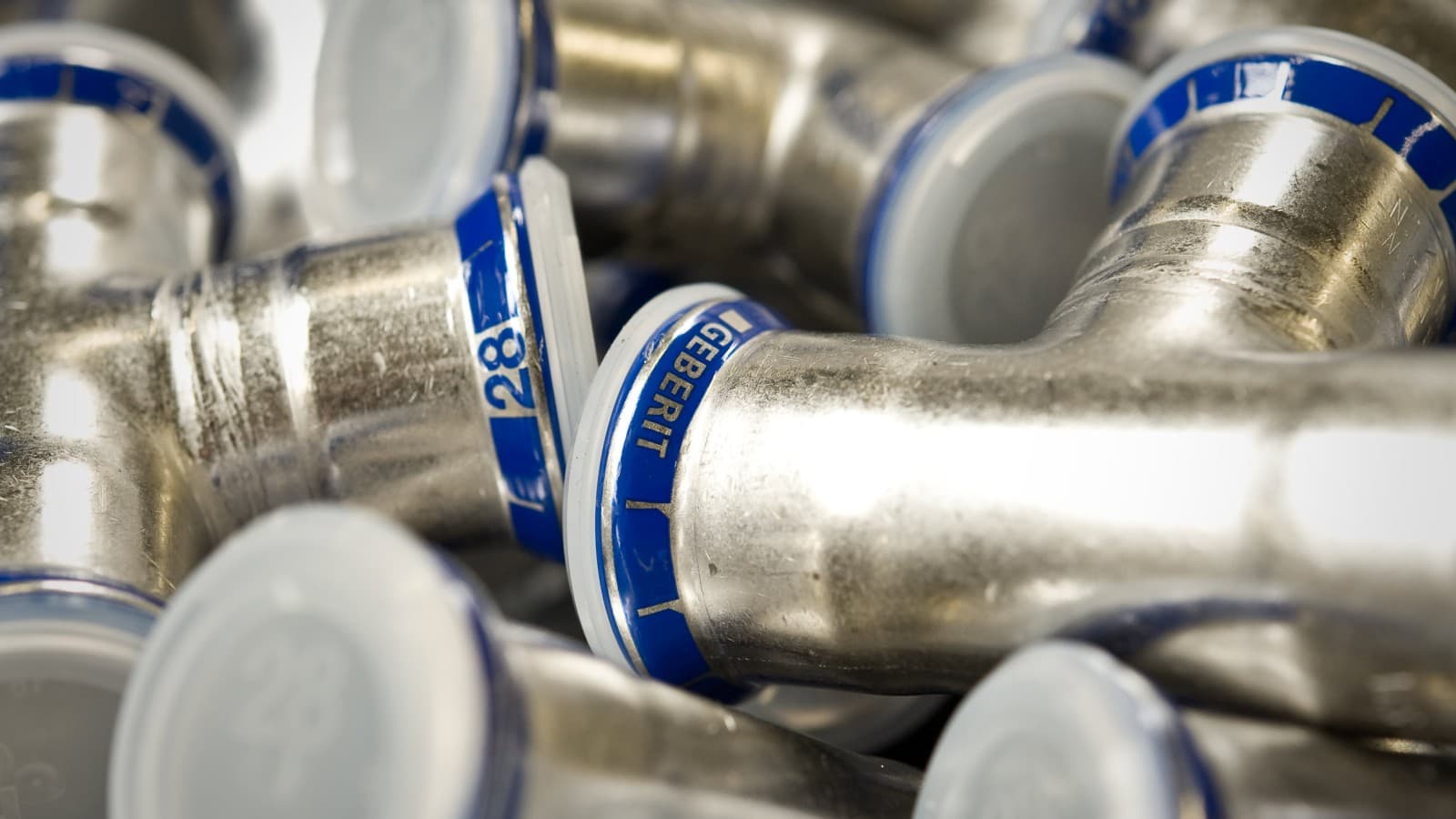

Geberit Mapress Stainless Steel pressfittings

• CrNiMo stainless steel 1.4401
• Pressing indicator to test if the fittings are pressed correctly
• Blue pressing indicator indicates stainless steel

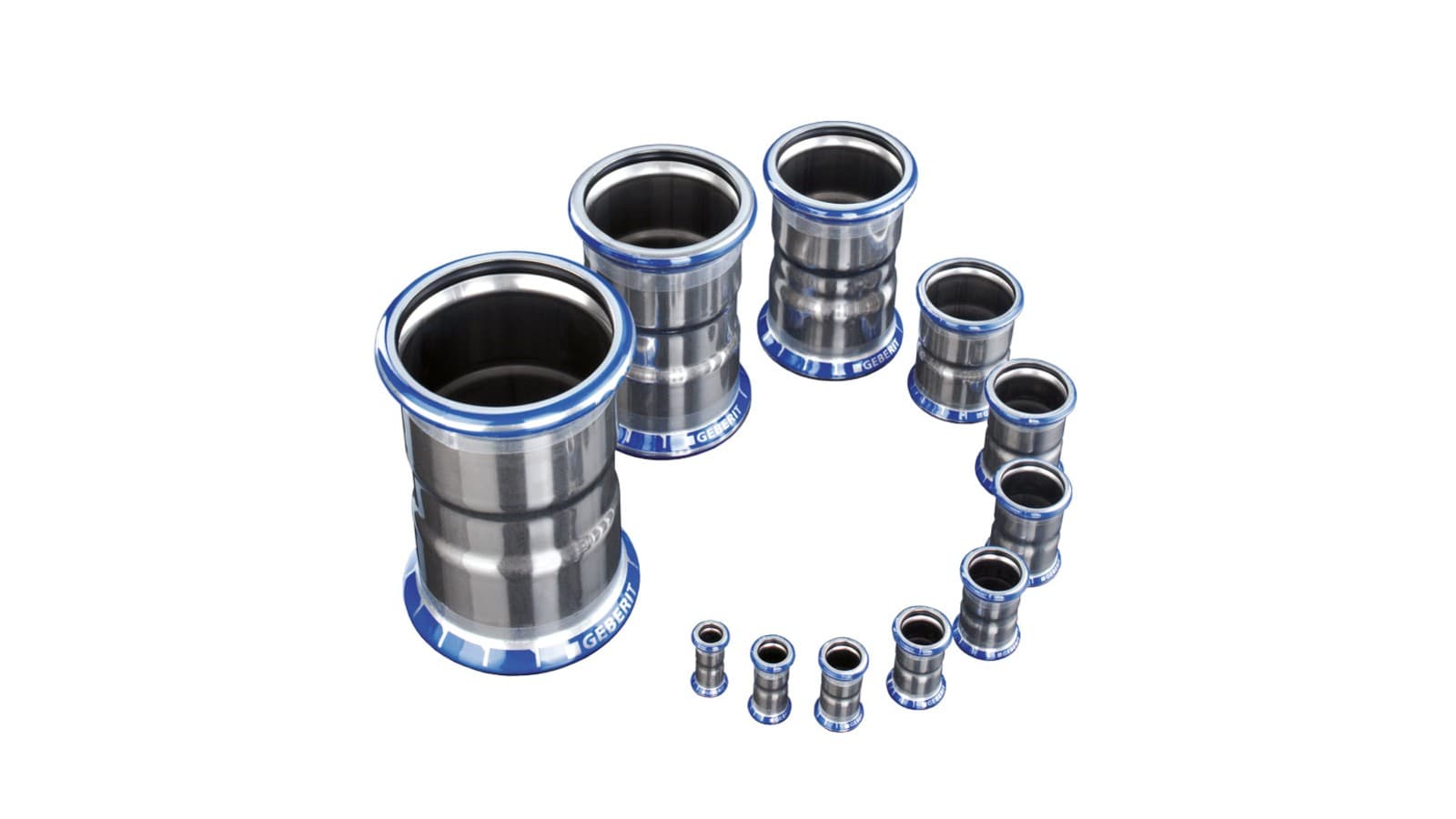

• Dimension printed on the pressing indicator
• Protection plug prevents fittings from becoming dirty
• Non-pressed connections are leaky and immediately identifiable during a pressure test
• More than 500 different fittings are available

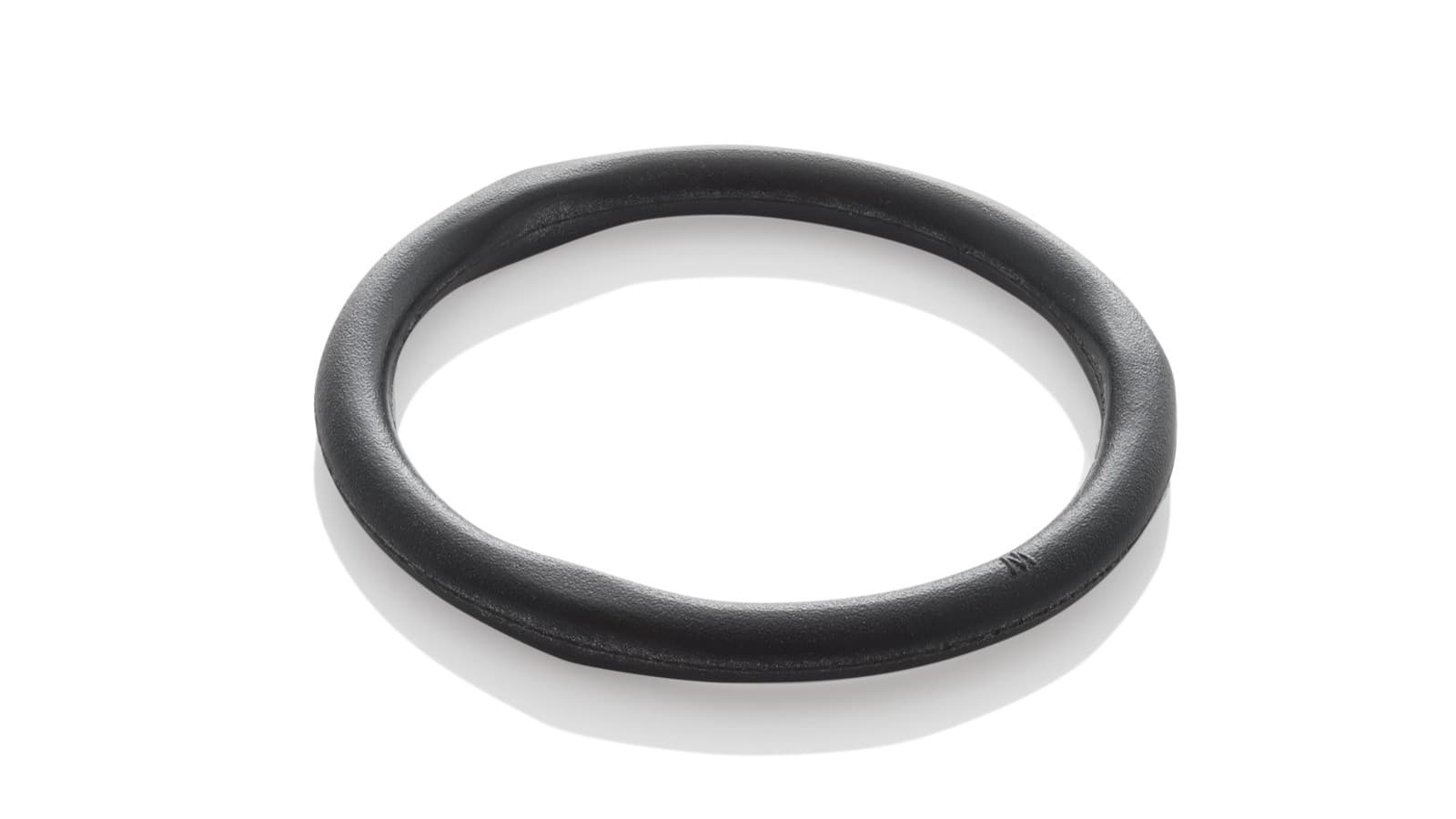

Geberit Mapress seal ring CIIR, black

Liquid media

• Hot and cold drinking water

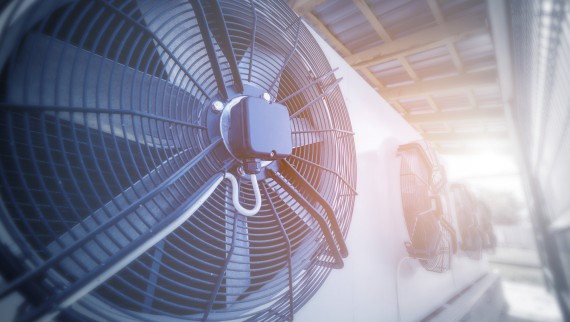

• Heating water
• Cooling water without antifreeze agent
• Cooling water with antifreeze agent
• Remote network heating water ≤ 120 °C
• Saturated steam ≤ 120 °C
• Service water
• Ultrapure water (except pharmaceutical water)
• Rainwater with a pH value > 6.0
• Grey and black water with pH value > 6.0
• Extinguishing water (wet)
• Sprinkler (wet)
• Chemicals and technical liquids

Gaseous media

• Compressed air (oil purity class 0–3)
• Negative pressure
• Inert gases
• Industrial gases

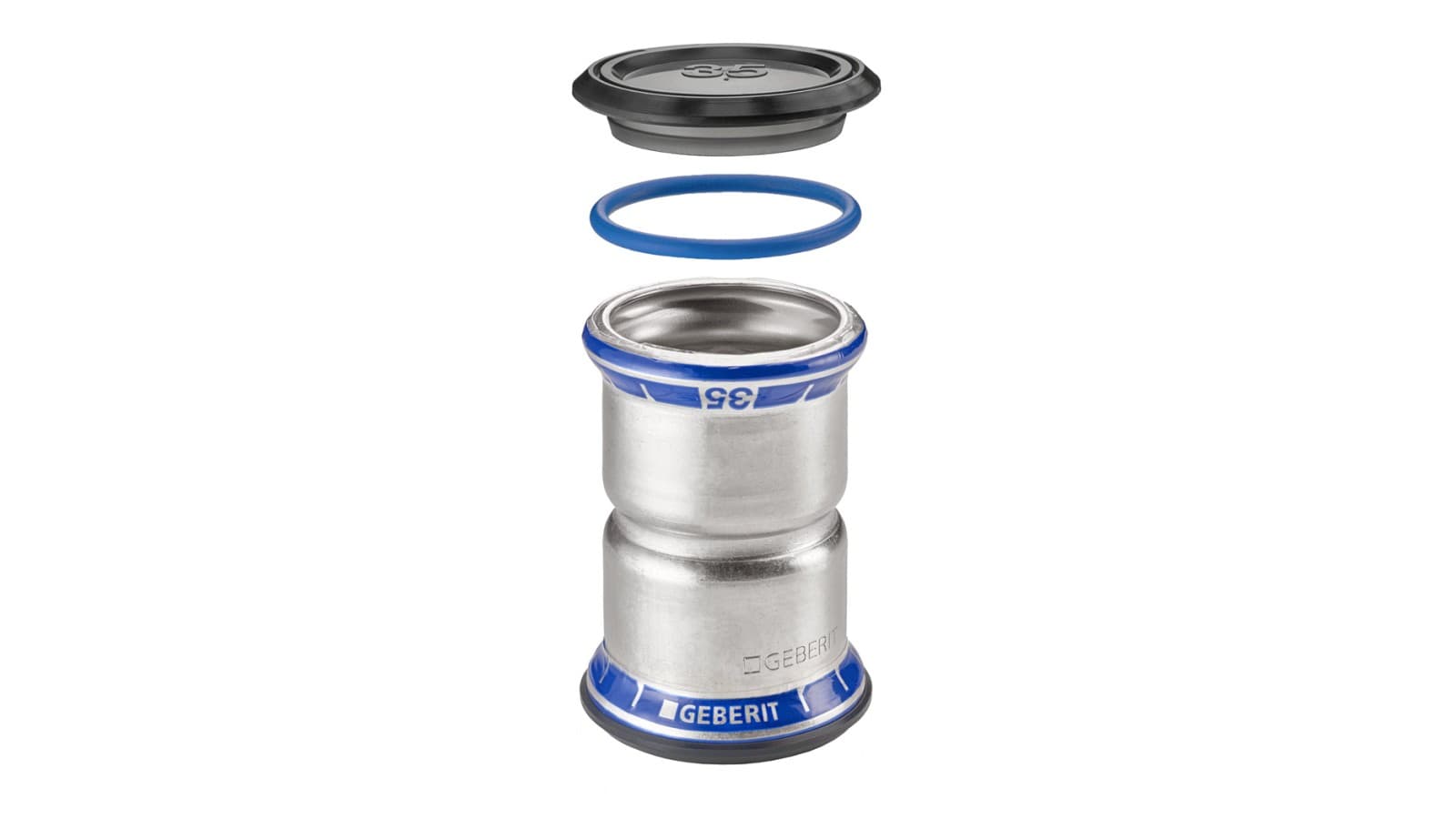

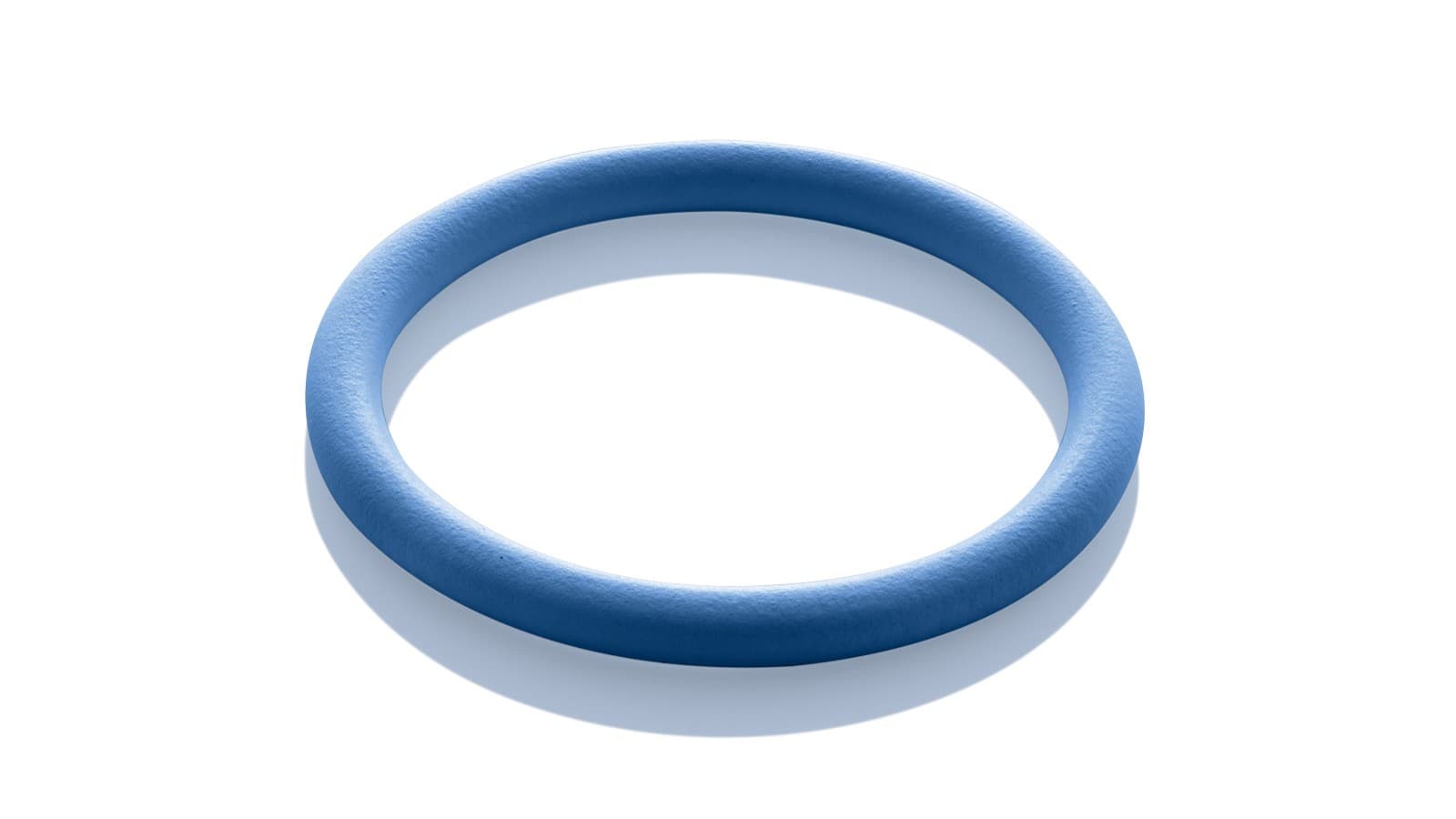

Geberit Mapress seal ring FKM blue

Liquid media

• Remote network heating water ≤ 140 °C
• Thermal medium (solar)
• Mineral oils
• Fuels
• Chemicals and technical liquids

Gaseous media

• Compressed air (oil purity class 0–X)
• Industrial gases

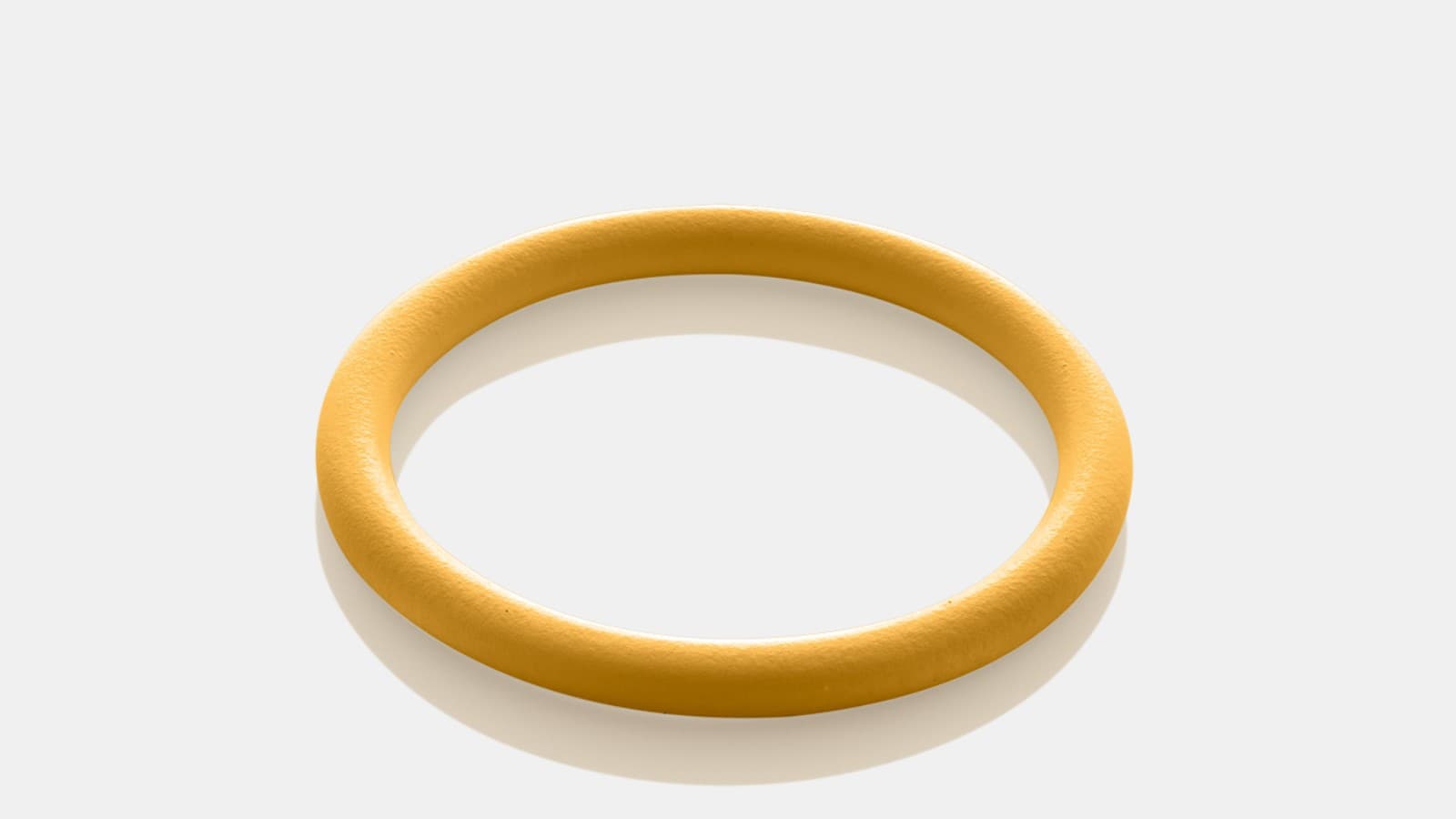

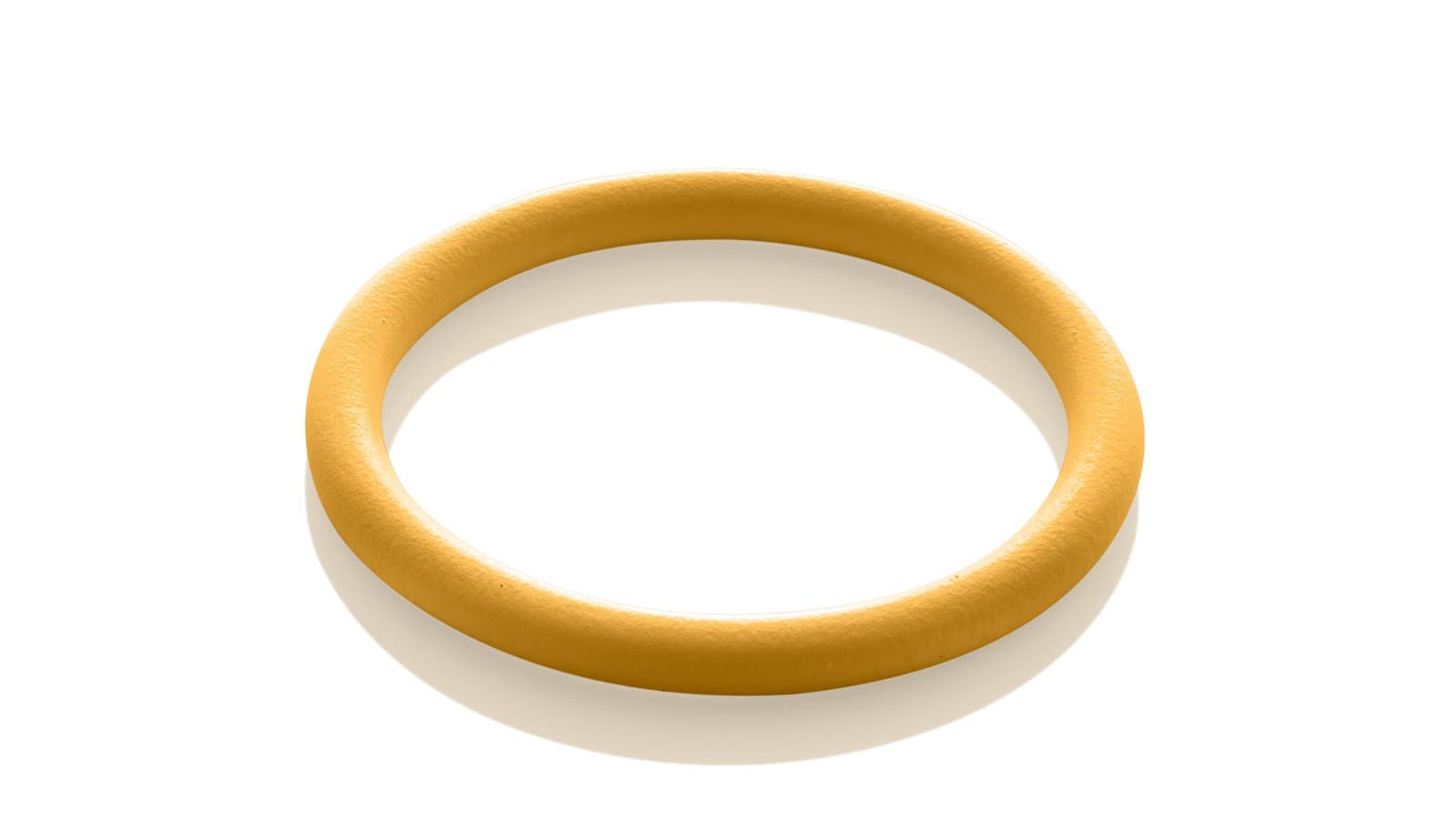

Geberit Mapress seal ring HNBR yellow

• Natural gases
• Liquefied gases
• Biogases

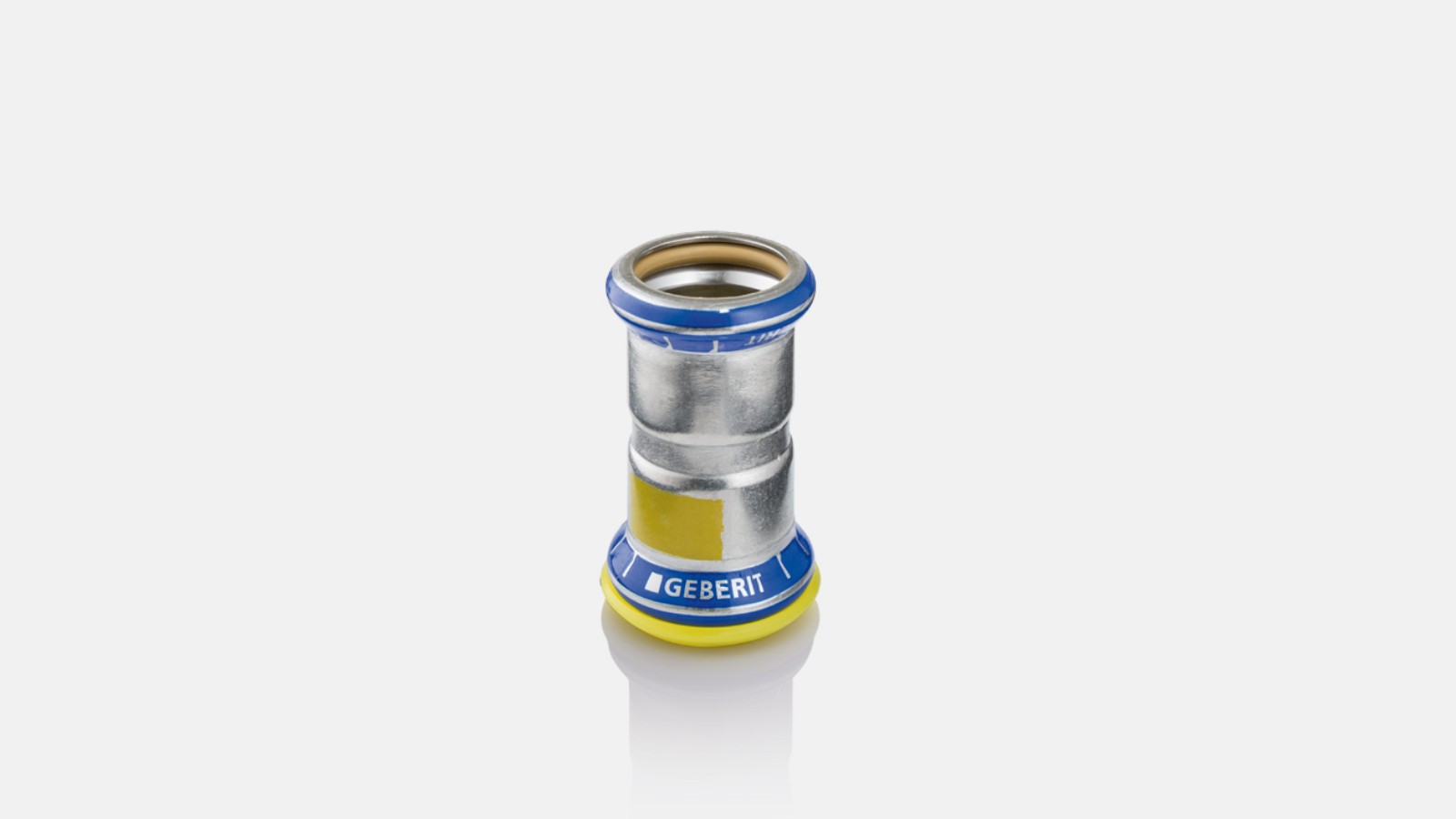

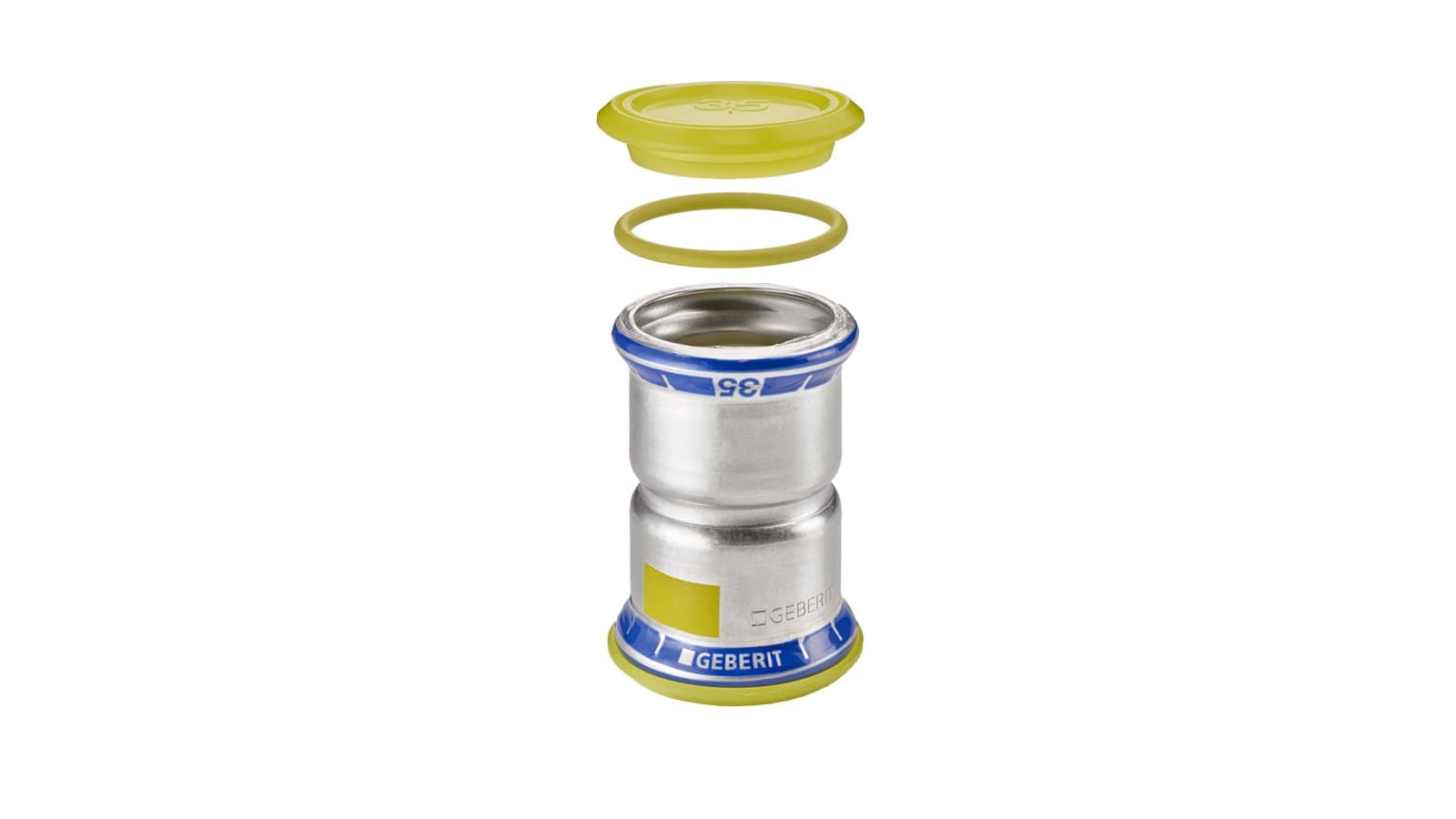

The Geberit Mapress Stainless Steel pressfittings which are suitable for gas installations are equipped with a yellow seal ring made of HNBR. They can be distinguished from other fittings through their yellow marking and yellow protection plug.

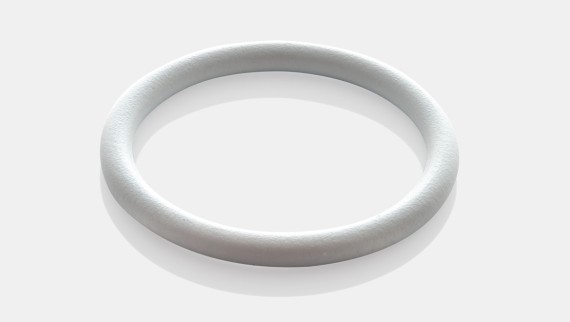

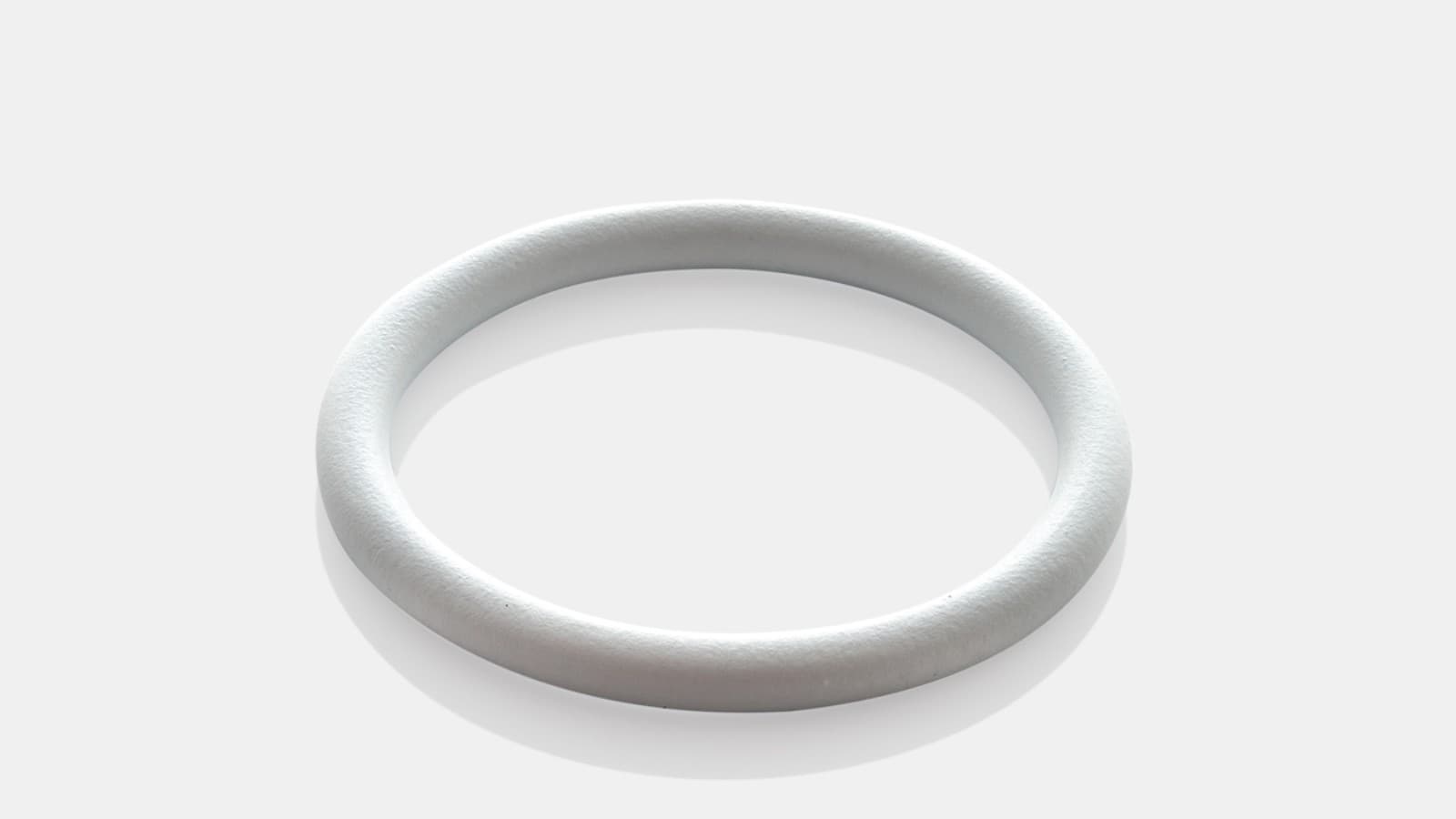

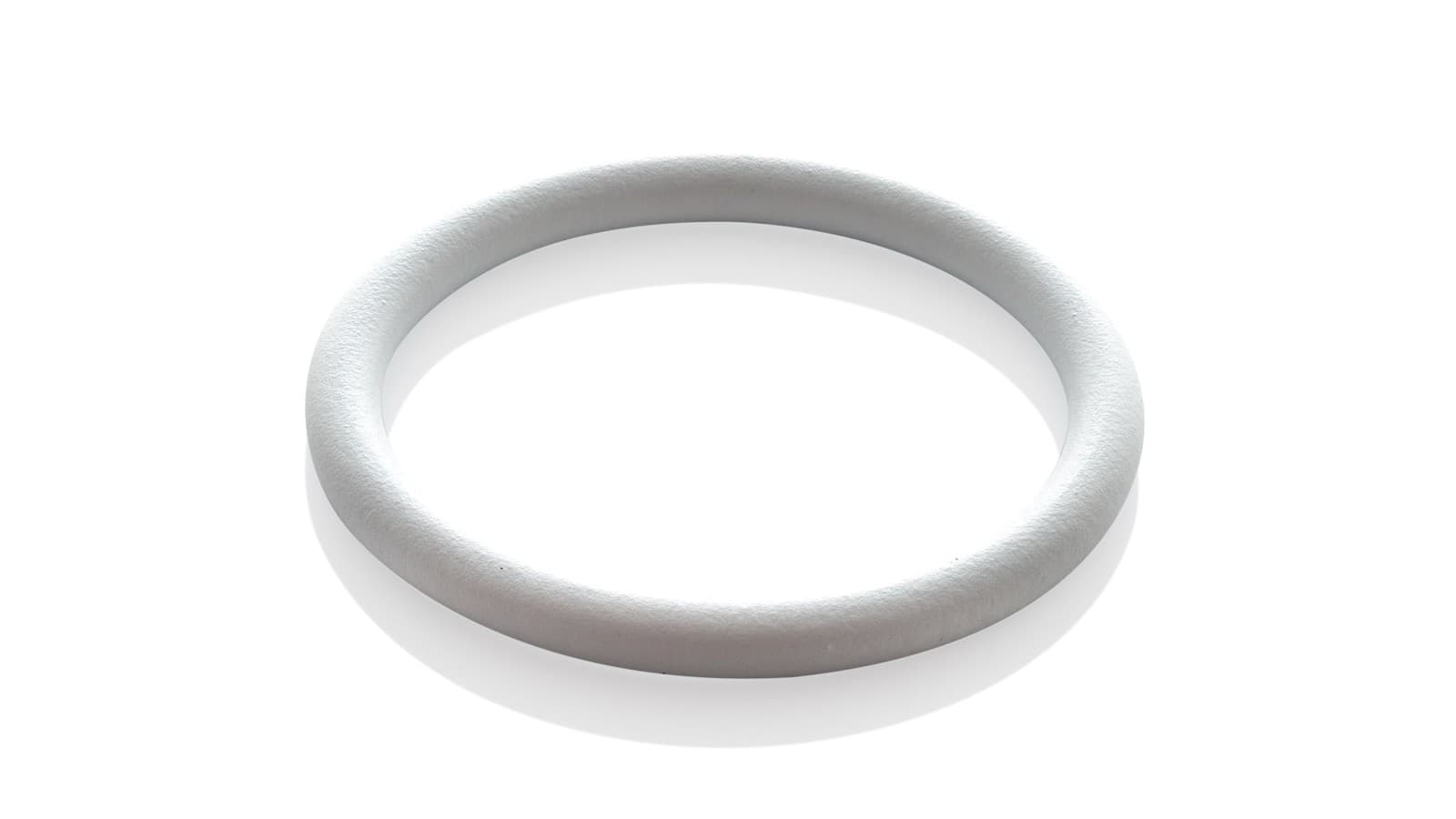

Geberit Mapress seal ring FKM white

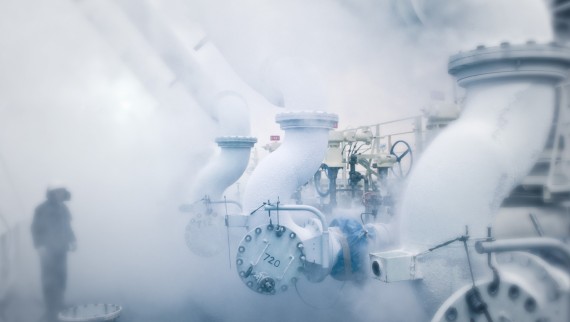

Saturated steam ≤ 155 °C (also operated cyclically)

Geberit Mapress seal ring FPM red

• Extinguishing water (wet/dry, dry)

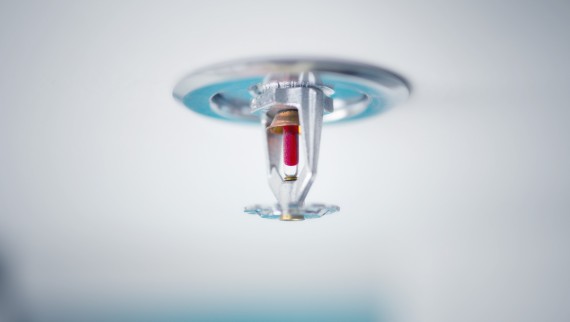

• Sprinklers (wet/dry, dry)

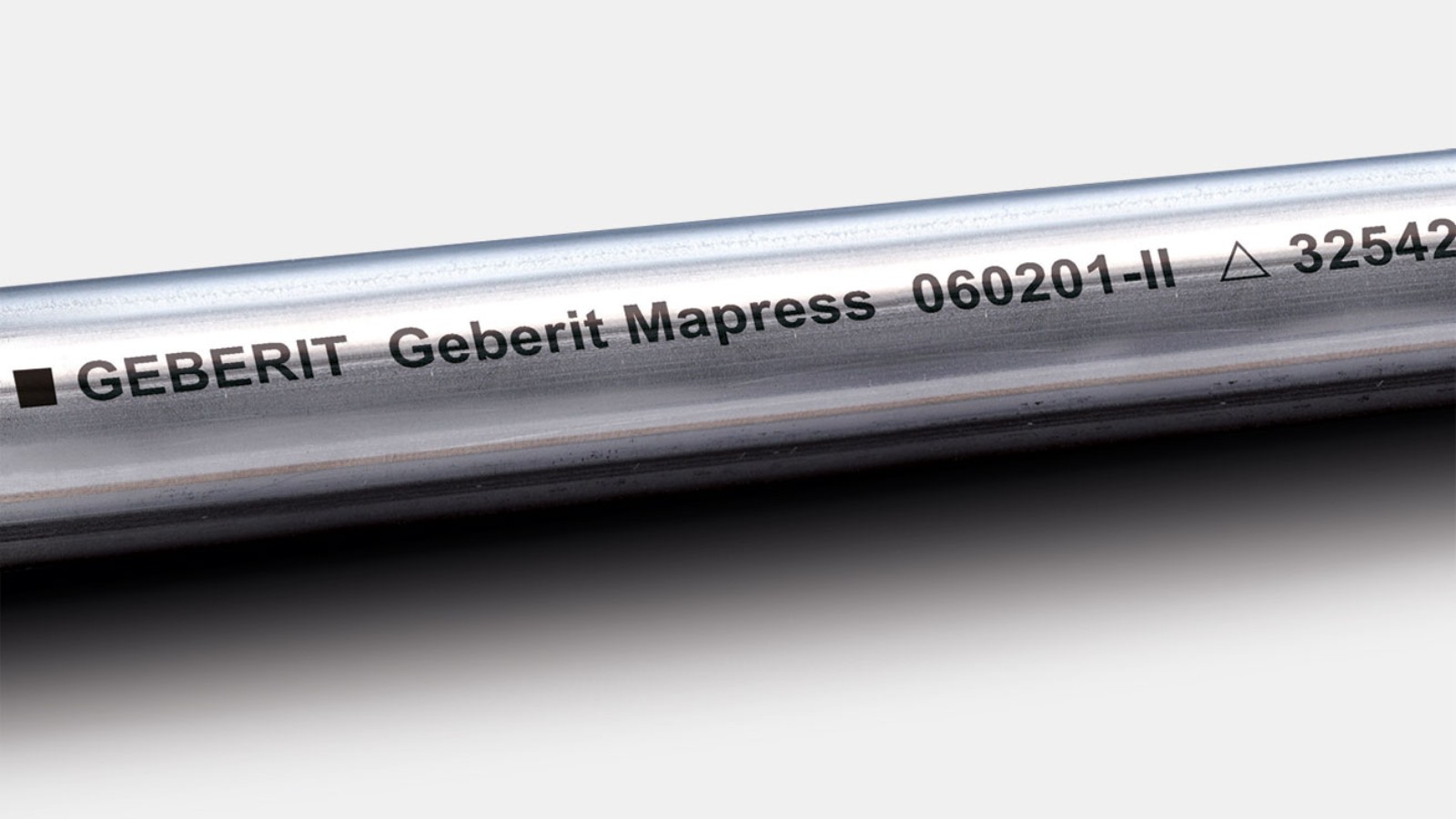

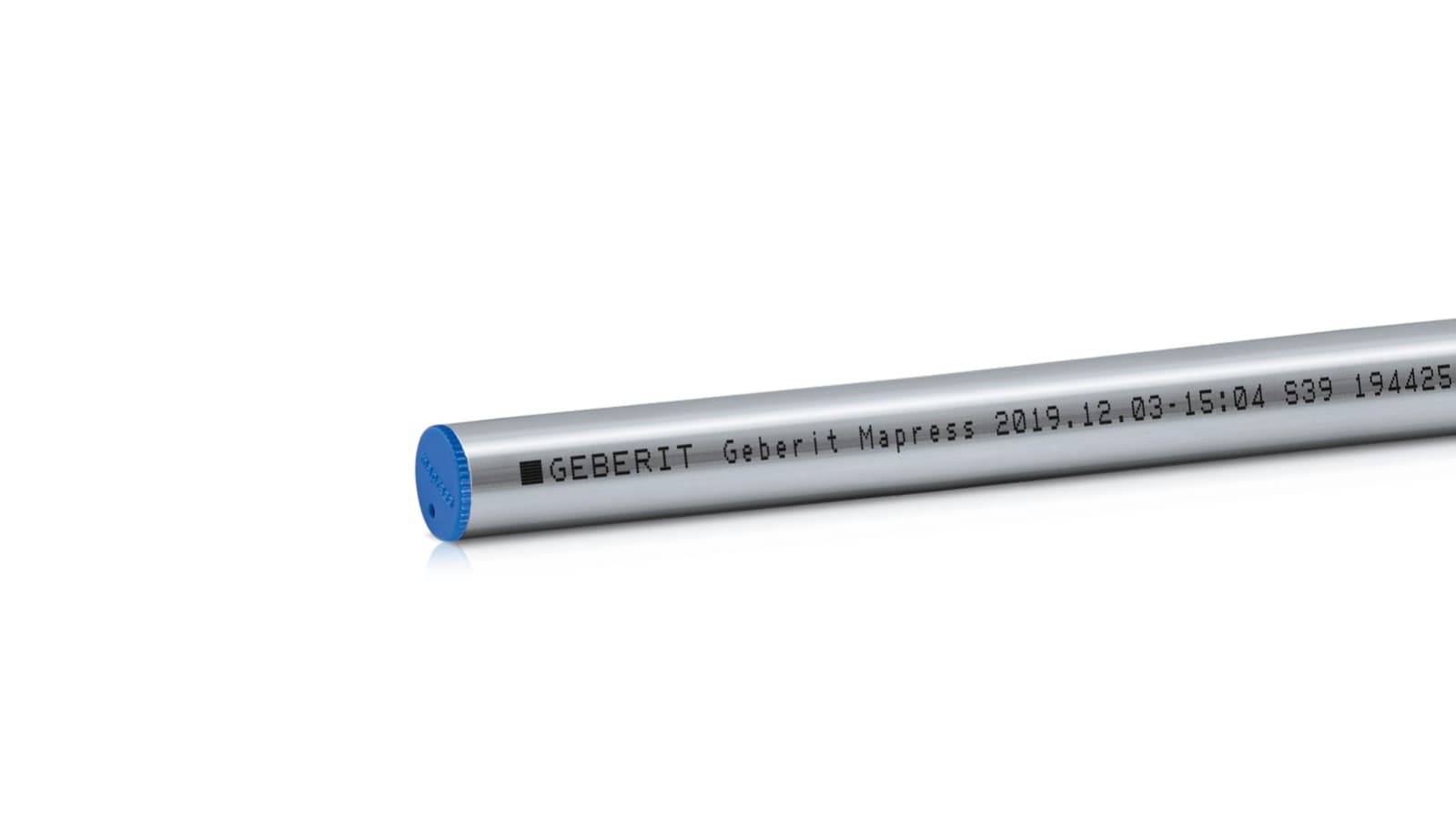

Geberit Mapress Stainless Steel system pipe CrNiMo

• An increased molybdenum content ensures stability and the highest level of protection against corrosion.
• Special thermal and mechanical treatment of the fittings creates a homogeneous, high-quality material structure.
• The effective treatment ensures both optimum formability and also the necessary long-term tightness.
• Smooth surfaces ensure a perfect fit of the seal ring and optimum hygienic properties.

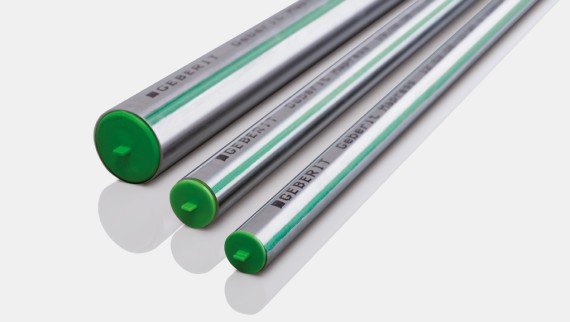

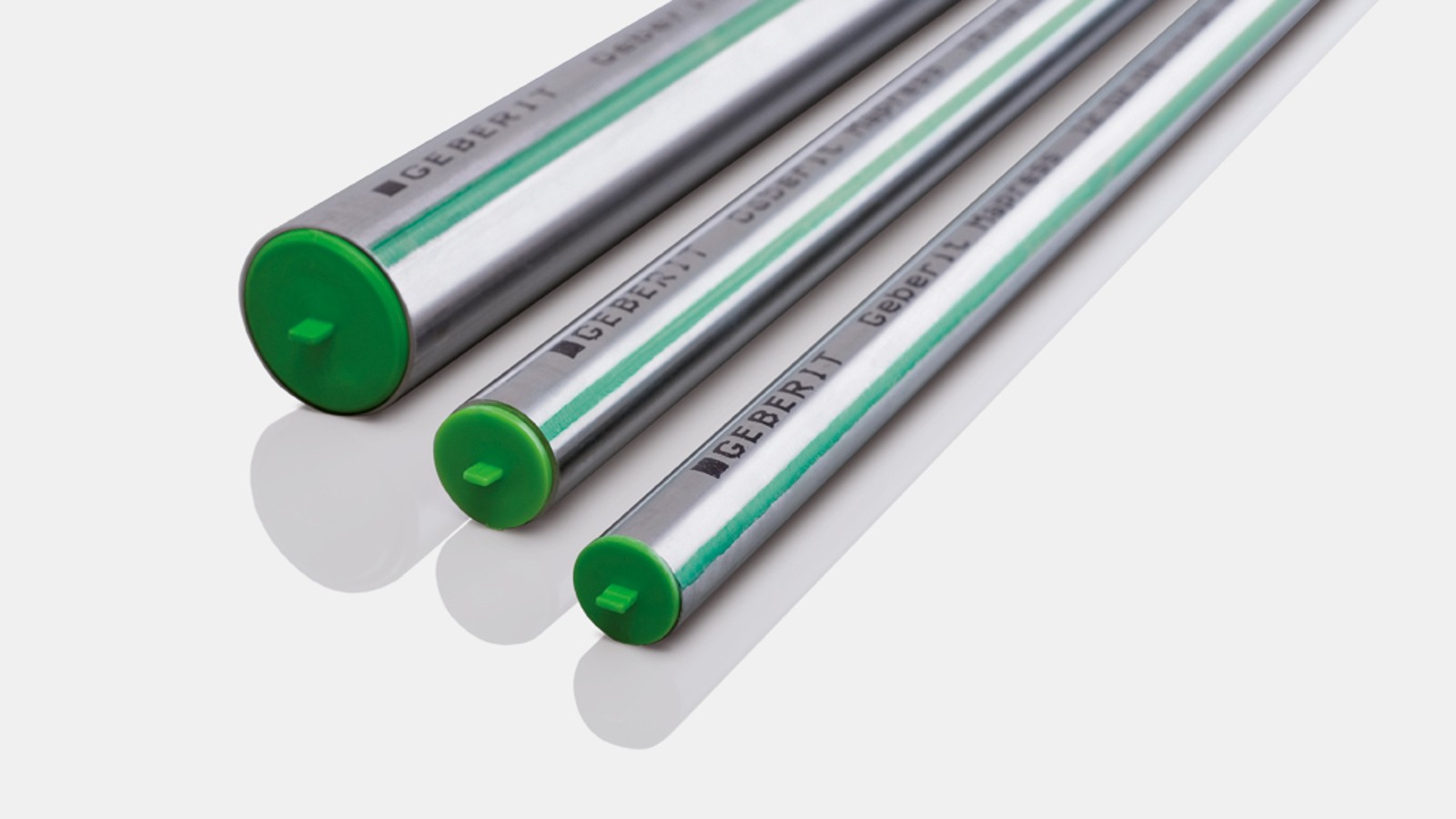

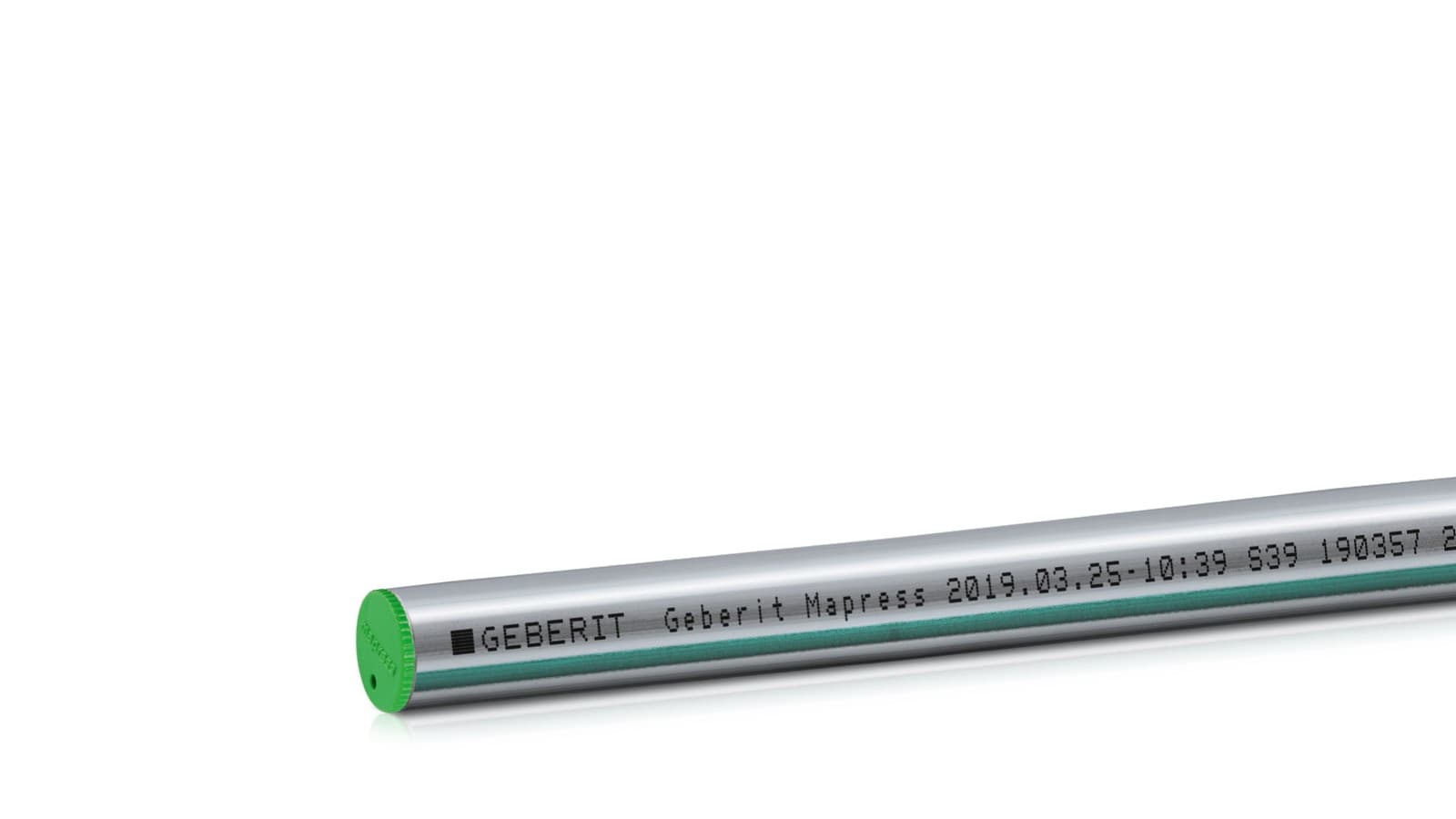

Geberit Mapress Stainless Steel system pipe CrMoTi

• CrMoTi steel as an economical alternative to conventional product materials in hygienic drinking water installations
• The green line along the pipe serves as an indicator
• A green protection plug protects the pipe from dust and dirt
