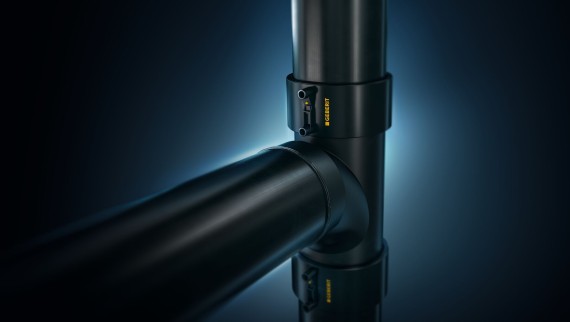

Geberit PE Durable polyethylene drainage system
Durable PE pipes – ready for anything

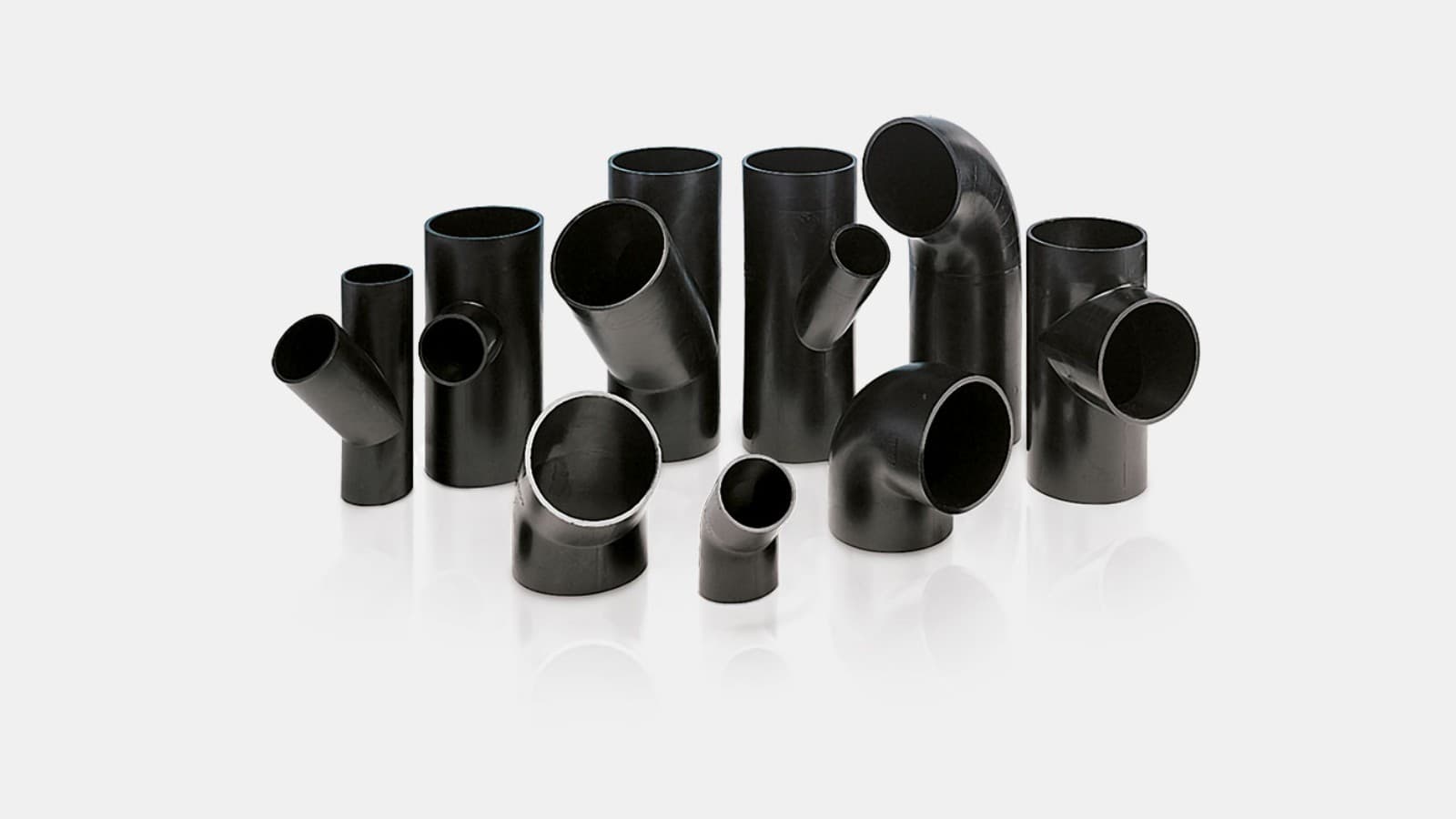

The polyethylene (PE) pipe material is extremely lightweight yet impressively durable. The Geberit PE drainage system is capable of withstanding major temperature fluctuations, pressure, and aggressive chemicals such as alkalis and acids. The robust Geberit PE pipes are available in all standard diameters ranging from d32 to d315, and the range of fittings – including the special fittings – is as comprehensive as it gets.
The non-positive connection technology allows Geberit PE to be used in a wide range of applications without special sound insulation requirements, such as embedding in concrete or for building and roof drainage.
Systems can either be installed directly on site or preassembled at the workshop.

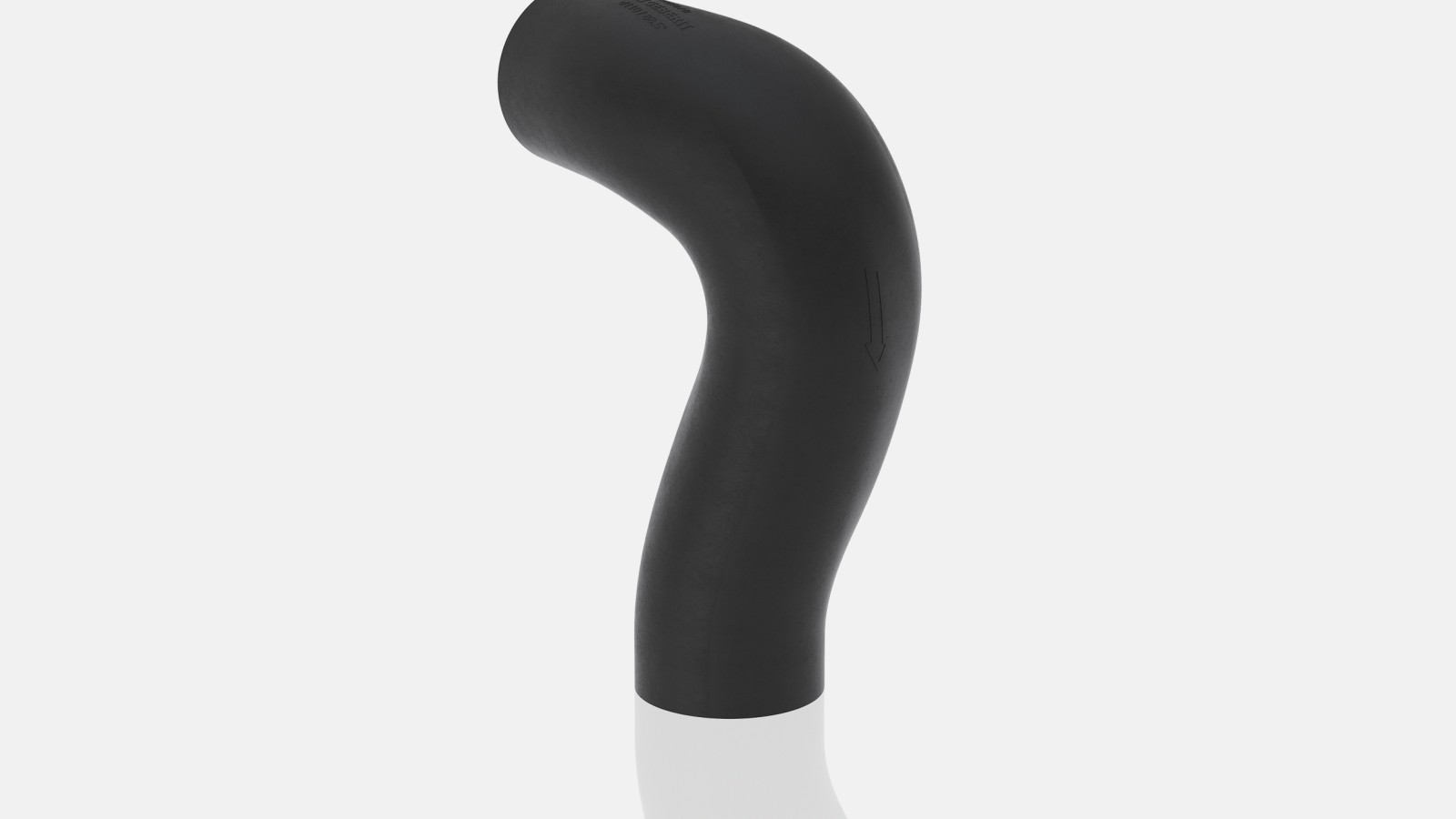

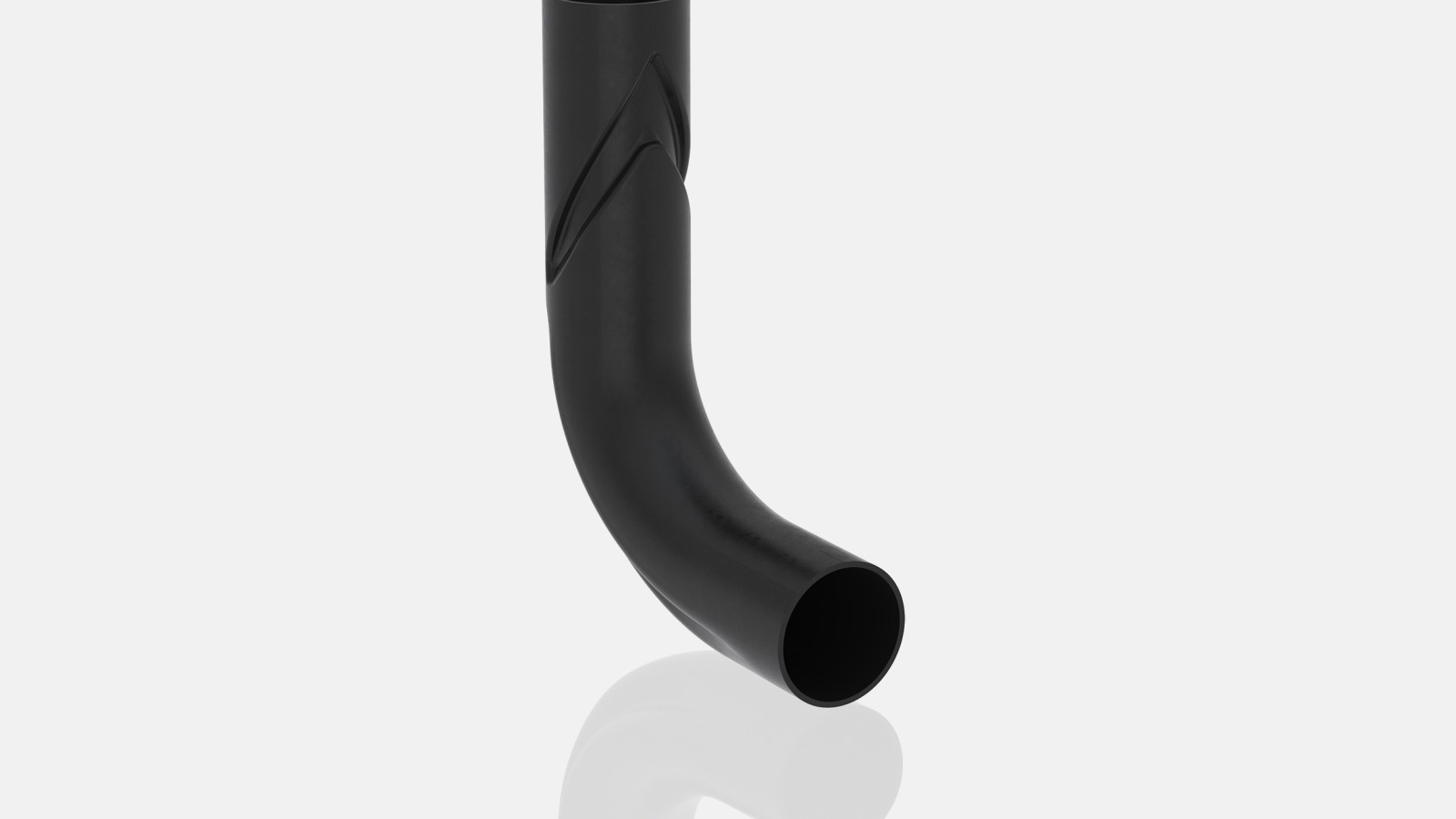

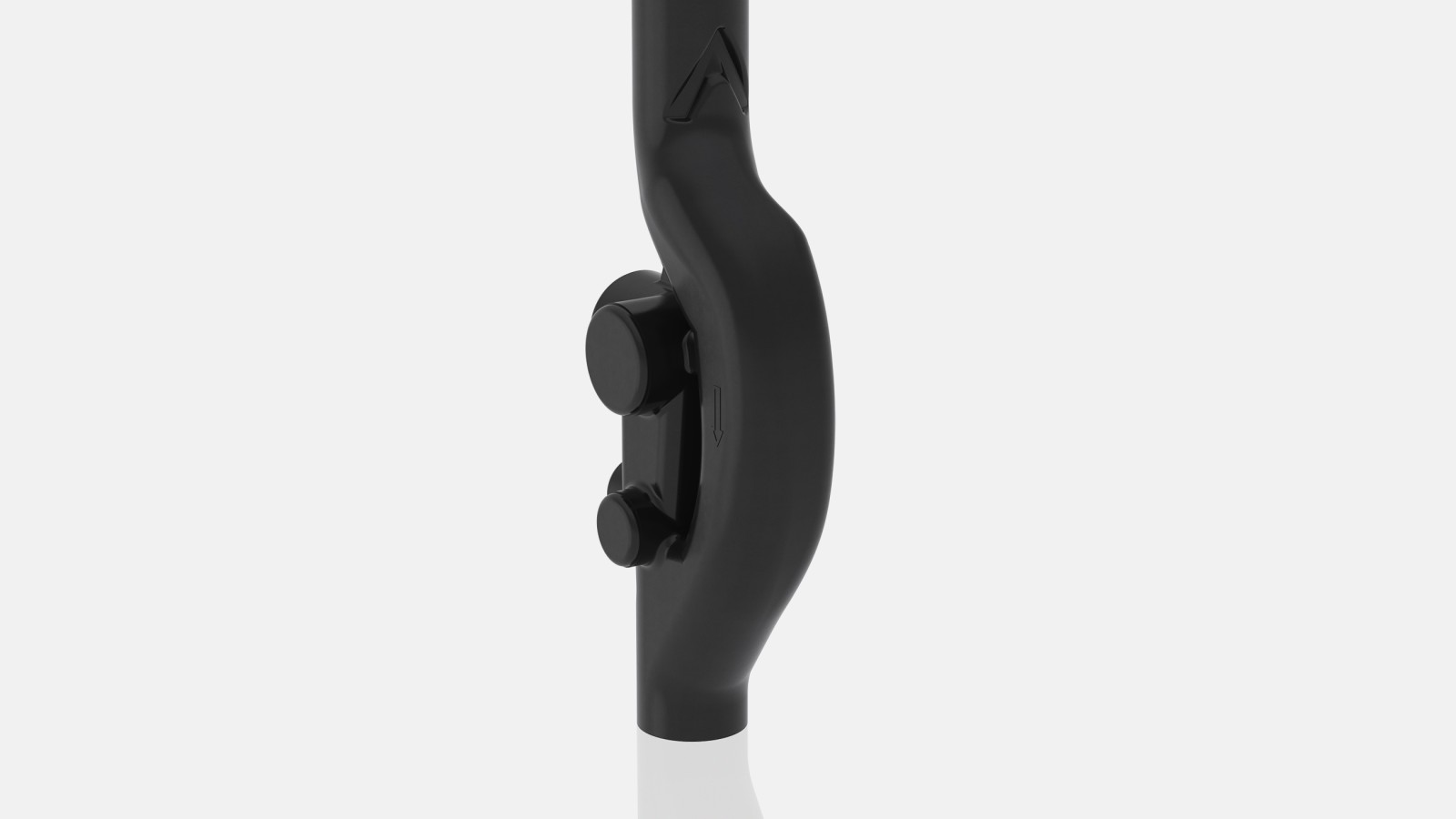

Geberit PE is also available in combination with the space-saving Geberit SuperTube technology.
Overview of Geberit PE
Dimensions
Available pipe dimensions
| Nominal width (DN) | Dimension d x s (mm) |
|---|---|
| 30 | 32 x 3 |
| 40 | 40 x 3 |
| 50 | 50 x 3 |
| 56 | 56 x 3 |
| 60 | 63 x 3 |
| 70 | 75 x 3 |
| 90 | 90 x 3.5 |
| 100 | 110 x 4.3 |
| 125 | 125 x 4.9 |
| 150 | 160 x 6.2 |
| 200 | 200 x 6.2 |
| 200 | 200 x 7.7 |
| 250 | 250 x 7.8 |
| 250 | 250 x 9.7 |
| 300 | 315 x 9.8 |
| 300 | 315 x 12.2 |
Geberit PE product range Articles, technical information and more
Do you have any questions? We are happy to help you.
Our specialists advise planners, plumbers and other professionals on their projects. They will be happy to advise you on how to best master your current challenges with our products.
Why choose Geberit PE?
The non-positive connection technology can be used for virtually any drainage application.
The Geberit PE drainage system is resistant to most standard alkalis, acids and chemicals.
Geberit PE is hydraulically optimised for greater cost-efficiency with reduced space requirements while ensuring high discharge capacity.

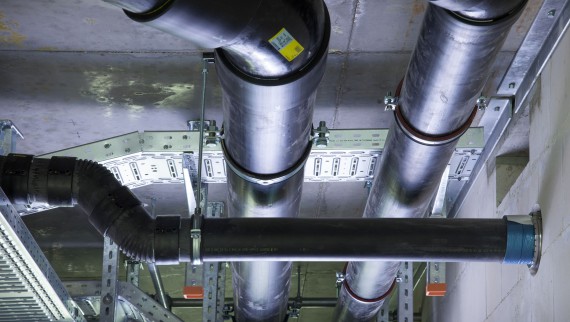

The robust Geberit PE pipes can be laid in concrete or in the ground.

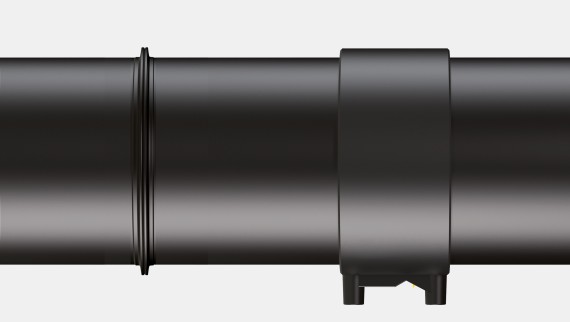

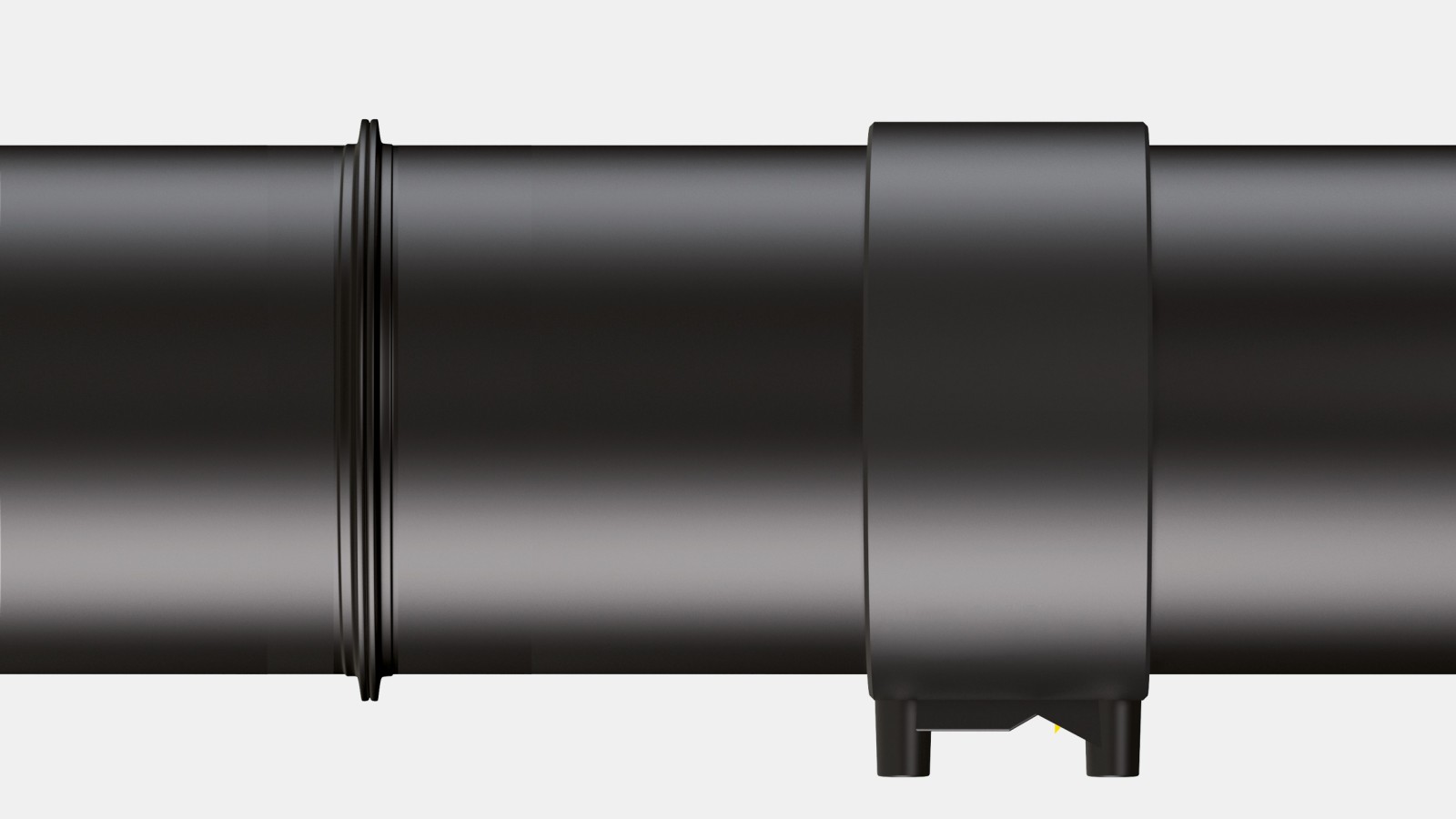

Connection technologies for Geberit PE With non-positive connection

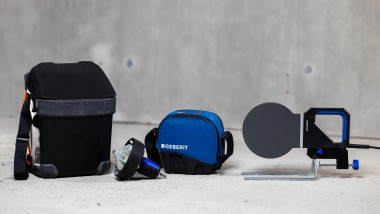

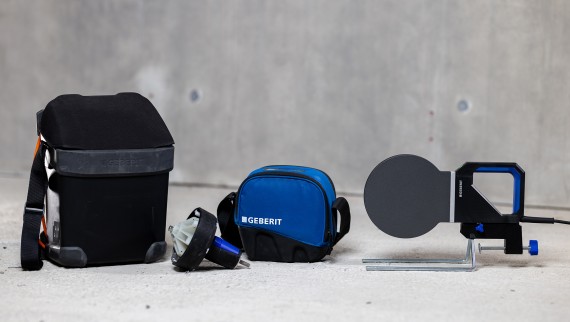

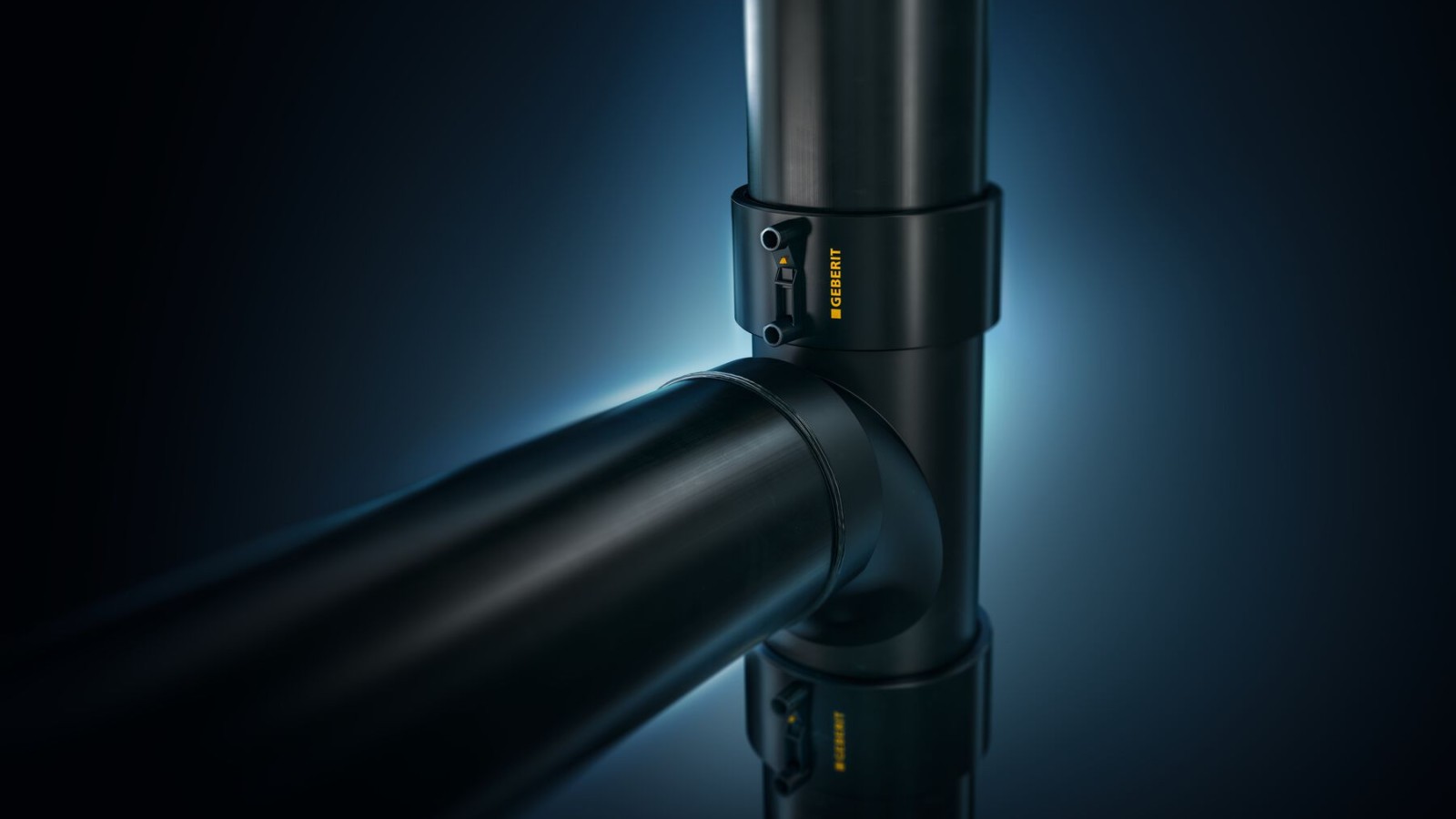

Geberit PE pipes and fittings are welded quickly and easily to form a permanent leakproof seal. Welding joints are made either using butt welding equipment or the Geberit electrofusion coupling, with a full range of tools and accessories available.
The welding joints of Geberit PE pipes remain reliably leakproof for many years, offering real peace of mind to building owners and plumbers alike. These welding joints are also suitable for prefabrication and laying the pipes in concrete.
Save time with prefabrication

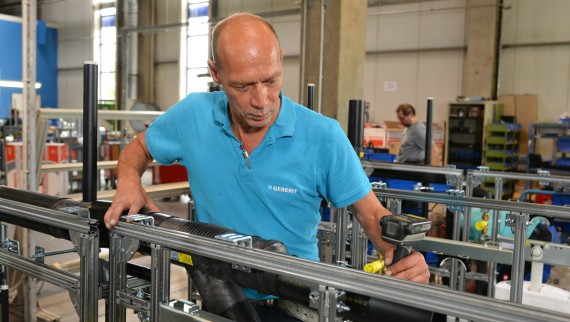

For larger construction projects, system structures can be easily prefabricated at the workshop. What’s more, their low weight makes it easy to carry prefabricated systems to higher floors for installation.
Suitable for laying in concrete

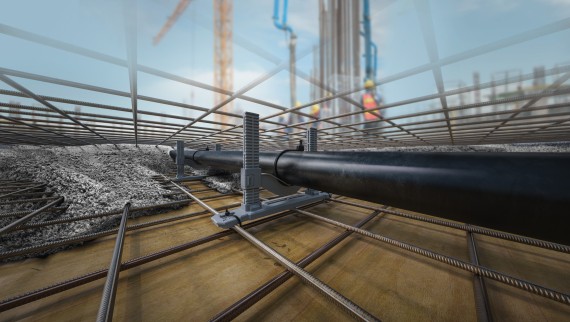

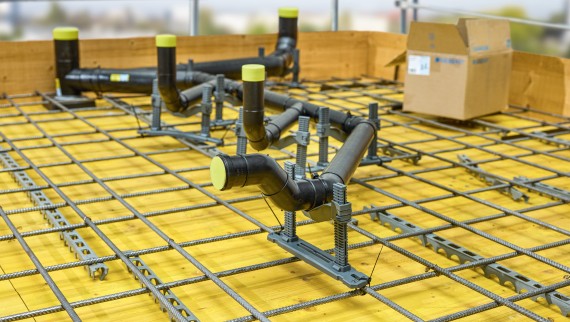

Geberit PE pipes can also be laid in concrete thanks to their non-positive welding joints. The Geberit cast-in concrete bracket ensures accurate positioning and secure fixing, offering a user-friendly, flexible solution that can withstand the forces of flowing concrete.
