Geberit BIM plug-in Plug-in and plan

The Catalogue module gives you direct access to up-to-date content for all Geberit products, country and language specific.

Benefits at a glance:

• Access up-to-date BIM objects for Geberit products at any time and from any location.
• New: Now also available for Geberit GIS and Geberit Kombifix installation elements as well as Geberit ceramic appliances and bathroom furniture.
• New: Find products faster by typing directly the Geberit article number.

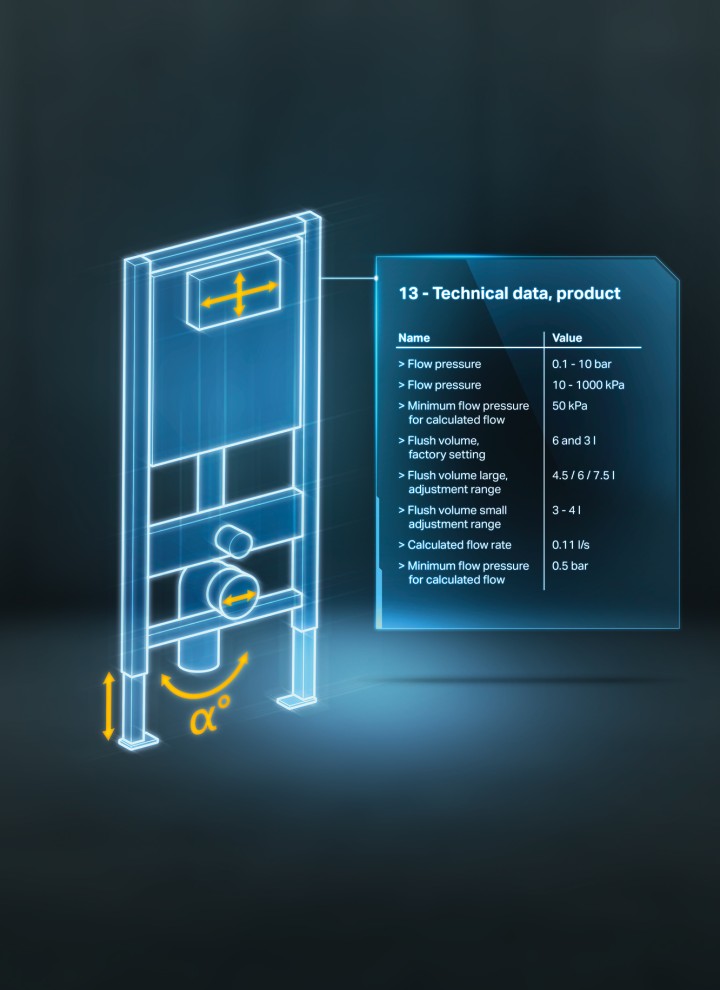

• New: Access more information about the product by linking directly to the Geberit online catalogue.
• Autodesk® Revit® families at product level
• Parametric models of a small file size that can be used efficiently. Ideal for larger projects where large files can negatively impact software and computer performance.
• No need to translate standard English texts any more, as Geberit BIM objects are available in 25 national languages. Can be switched over to a generic at the touch of a button – important when dealing with tenders for public projects!
• Available for the 2023, 2022 and 2021 versions of Autodesk® Revit®.

The hydraulic calculation for the Geberit Pluvia roof drainage system can also be carried out directly in Autodesk® Revit®.

Range of functions: *

• Plug-in with user-friendly ribbon for the 2023, 2022 and 2021 versions of Autodesk® Revit®
• Hydraulic calculation directly in Autodesk® Revit®
• Automatic dimensioning of the planned Geberit Pluvia roof drainage system
• Hydraulic certification including parts list as a PDF or Excel download
• Up-to-date regulations, standards and new Geberit products integrated
• Calculation according to country-specific standards or Geberit regulations
• Automatic output of material, hydraulic and offer lists

*Use of the Geberit Pluvia plug-in requires a valid Geberit ProPlanner licence. The licence file can be exported from the Geberit ProPlanner software: Follow the menu items “Help” –> “Licence management” –> “Licence data“.
If you do not yet have a Geberit ProPlanner licence, please contact your Geberit representative or click on the “ProPlanner licence” box on the website.

The installation walls can be calculated with Geberit GIS or Geberit Duofix elements and material. Existing lightweight walls may have to be replaced. The material specifications can be obtained as a PDF or Excel export.

Simple and efficient installation system planning:

• Easy planning of the Geberit GIS and Duofix installation systems
• Export function to the ‘Detailed planning 3D’ module in Geberit ProPlanner
• Calculation according to current Geberit directives and normative regulations
• Automatic output of product material, parts, offer and cut lists, as well as floor plan, front view and installation drawings

Various assistants make digital planning and prefabrication considerably easier:

• Pipe numbering for prefabrication

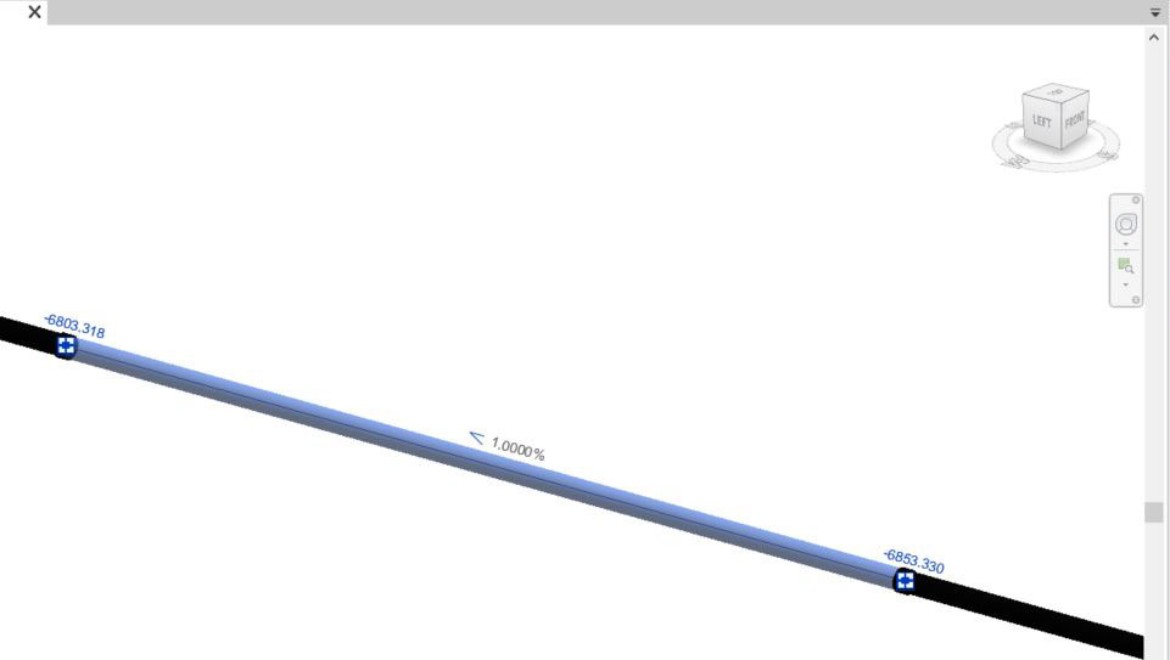

• Length segmentation command for pipe segmentation
• Assigning article numbers to system pipes
